Enforce data quality

This feature is available with Conduktor Trust only.

Overview

Bad data breaks customer experiences, drives churn and slows growth. Conduktor Trust helps teams catch and fix data quality issues before they impact your business. You define the Rules and we’ll enforce them at the streaming layer.

Prerequisites

Before creating data quality Rules and Policies, you have to:

use Conduktor Console 1.34 or later,
use Conduktor Gateway 3.9 or later,
be logged in as an admin to Console UI or use an admin token for the Conduktor CLI,
configure your Gateway cluster in Console and fill in the Provider tab with Gateway API credentials.

Rules

You can define three different types of Rules that will validate your Kafka message data quality:

CEL (Common Expression Language) expression
Built-in
JSON schema

Rules do nothing on their own - you have to attach them to a Policy.

Create a Rule

You can create a data quality Rule (CEL or JSON schema) using the Console UI or the Conduktor CLI.

To create a Rule using the Console UI:

Go to Rules and click +New Rule.
Define the Rule details:
- Add a descriptive name for the Rule.
- The Technical ID will be auto-populated as you type in the name. This is used to identify this Rule in CLI/API.
- (Optional) Enter a Description that explains the purpose of your Rule.
Select the Rule type (CEL expression or JSON schema) and provide the required logic:
- CEL is an expression language supporting common operators like == and > as well as macros like has() to check for the presence of fields. Use matches() to test regex patterns. See the CEL language definition for details. You can access a set of pre-built examples by clicking Show regex library. Click on the relevant example to copy it and paste into your Rule expression. You can then customize it further, as necessary.
- For JSON schema, enter your schema definition. See the JSON schema specification for details.
Click Create.

CEL expression Rules

You can create Rules with CEL expressions that capture business logic of your data. For example: value.customerId.matches("[0-9]{8}"). The Rules page lists your Rules with a preview of their CEL expressions. Open a Rule’s detail page to see its description, full CEL expression and attached Policies.

Sample CEL Rules

Make sure you amend these examples to use your values.

Email RegEx validation

UUID RegEx validation

Ensure Header is JSON

Built-in Rules

We provide built-in validation Rules that can’t be achieved with CEL.

We currently only support Confluent and Confluent like (e.g. Redpanda) schema registries.

EnforceAvro

EnforceAvro ensures that:

Your messages have a schema ID prepended to the message content.
The schema ID exists within your schema registry.
The schema it references is of type avro.

JSON schema Rule

Enforce JSON Schema validation on Kafka messages to ensure data consistency and structure compliance.

Configure JSON schema

Add a JSON schema Rule using the CLI:

apiVersion: v1
kind: DataQualityRule
metadata:
    name: json
spec:
    schema:
        {
          "$schema": "http://json-schema.org/draft-07/schema#",
          "type": "object",
          "required": ["name", "age"],
          "properties": {
            "name": { "type": "string" },
            "age": { "type": "integer", "minimum": 0 },
            "isActive": { "type": "boolean", "default": true }
          }
        }
    displayName: valid user
    description: check that the user is valid
    type: JsonSchema

Schema requirements

Has to conform to the JSON schema specification
If no $schema is specified, will default to draft 2020-12

Examples

Basic User Validation

{
  "type": "object",
  "required": ["id", "name", "age"],
  "properties": {
    "id": { "type": "string" },
    "name": { "type": "string", "minLength": 1 },
    "age": { "type": "integer", "minimum": 0 }
  }
}

Schema with Version

{
  "$schema": "https://json-schema.org/draft/2020-12/schema",
  "type": "object",
  "required": ["id", "name"],
  "properties": {
    "id": { "type": "string" },
    "name": { "type": "string" }
  }
}

No Additional Fields Allowed

Policies

A Policy is made up of Rules that are applied to topics/prefixes. Once created, Policies can be assigned actions to take effect when certain criteria is met (e.g., a Rule in the Policy is violated). The Policy’s detail page shows its description, linked Rules, targets, the number of messages evaluated and the number of violations since the Policy was created. You can also enable (and disable) actions for the Policy from this page. The Policies page lists your Policies with their actions and targets.

Actions

The available actions to enable for a Policy are:

Report: when violations occur, log these as events in the Policy’s history.
Block: when a violation occurs, prevent data from being processed or transmitted.
Mark: when a violation occurs, add a special header to the message so it can be identified and handled downstream. Find out about how marking works.

By default, Policies created using the Console UI don’t have any actions enabled. You have to complete the Policy creation first and then enable the required actions. If there are any additional actions you’d like to see, get in touch.

If both Block and Mark are enabled, only blocking will be applied: messages violating the Policy will be blocked entirely with no marking.

Mark action

When the Mark action is enabled, messages that violate the Rule(s) are tagged with a special header:

Header name: conduktor.dataquality.violations
Header value: JSON object mapping policy names to arrays of failed rule names. For example:

{
  "policy-name": ["rule-1", "rule-2"],
  "another-policy": ["rule-3"]
}

Violations metrics

Monitor Rule violations to a Policy over the selected time range 30 minutes, 1 hour, 1 day or 7 days.

Metrics displayed

The page displays four types of metrics:

Messages Evaluated Count shows total messages checked against this policy
Violations Count shows total violations detected
Violations Graph is a bar chart showing past violations to help identify patterns and spikes
Violations History lists individual violation events showing when and where violations occurred

Data freshness

Important: There’s a timing difference between the metrics:

Violations history: Updated almost immediately
Messages evaluated count, violations count and violations graph: May be delayed up to 1 minute

This delay exists because these metrics are collected through our monitoring system (Cortex), which processes data in batches for performance. The violation history comes directly from the backend database. Due to this, the violations history can show recent violations that do not yet show up in the graph or counts.

Create a Policy

You can create a data quality Policy using the Console UI or the Conduktor CLI.

To can create a Policy using the Console UI:

Under the Trust section of the main menu, go to Policies and click +New Policy.
Define the Policy details:
- Add a descriptive name for the Policy.
- The Technical ID will be auto-populated as you type in the name. This is used to identify this Policy in CLI/API.
- Select a group to own the Policy. This controls who can view and manage the Policy, and which resources can be targeted.
- (Optional) Enter a Description to explain your Rule.
Select Rules to be used in the Policy:
- Every Policy must have at least one Rule
- You can also create new Rules from this page
- Click Continue to move to the next step.
Select targets for the Policy:
- Every Policy must have at least one target
- A target consists of one or more topics on a specified Gateway
- You can either select specific topics, or specify a prefix like orders-*
- Click Continue to move to the next step.
Review the Policy, and if you are happy, confirm by clicking Create.

Manage a Policy

Once a Policy is created, you are able to view the linked Rule(s), the target(s) of the Policy and change the actions of the Policy. You can also view the violations as they have occurred if you have reporting enabled, otherwise you will only have the counts available.

Since the block action has the ability to stop data from being sent to the requested topic, you have to confirm this by entering ‘BLOCK’ when prompted. Conversely, to disable the blocking, enter ‘UNBLOCK’ when prompted.

Assign permissions

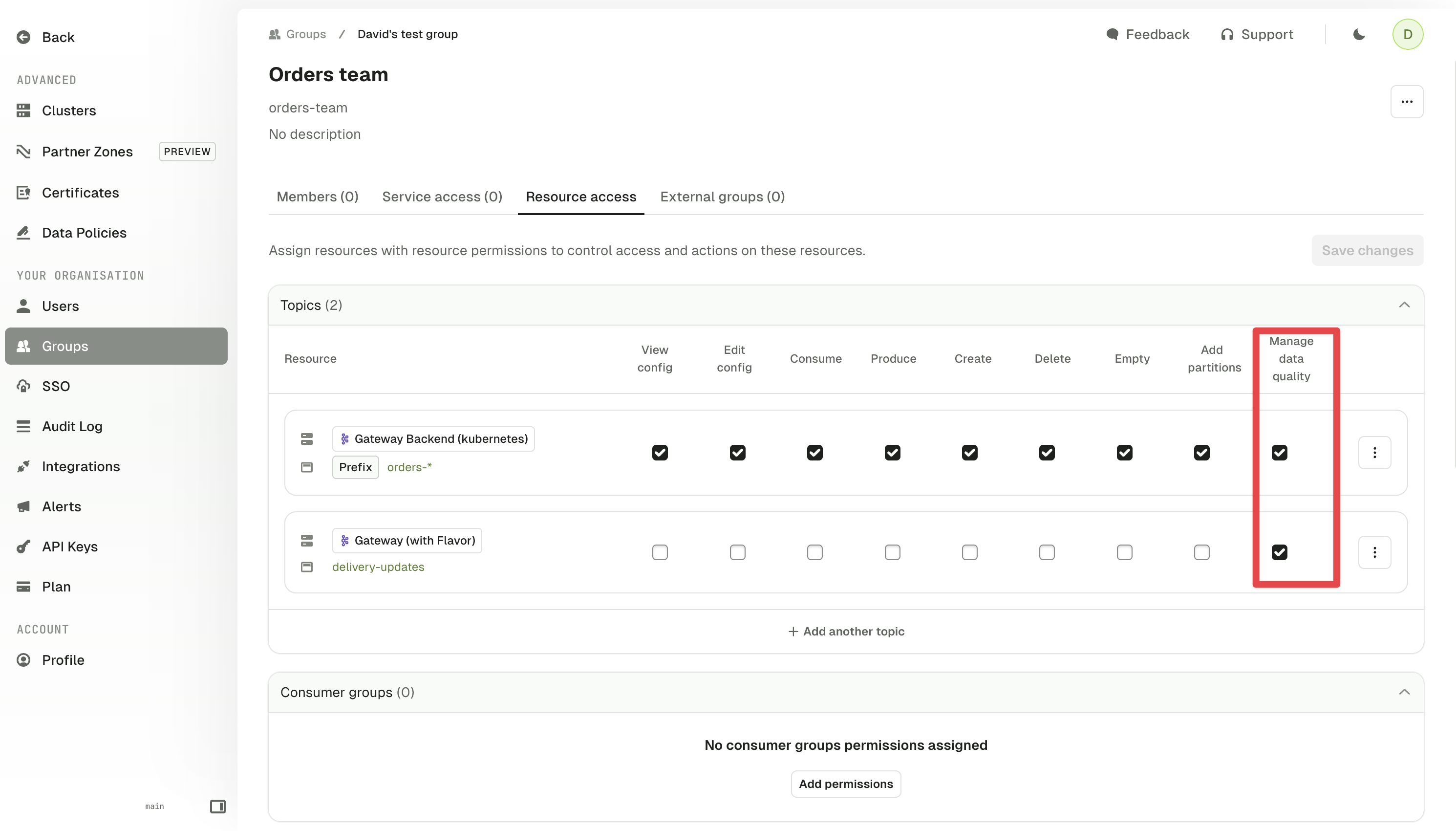

Policies are owned by user groups and can be created by admin users or groups with the Manage data quality permission enabled. To apply this permission to a group, go to Settings > Groups and in the Resource access tab tick the Manage data quality checkbox for the relevant resources, as required.

Make sure to enable this on the Gateway (and not the underlying Kafka) cluster. Modifying group permissions won’t affect any Policies associated with the group.

Set up Policy violation alerts

You can create alerts that are triggered when a Policy violation happens. Data quality alerts can be owned by groups or individual users.

To create a data quality policy alert via the UI, go to the details page of a Policy (click on the button next to the violations graph) or from the alert tab on the Policies list page.A data quality policy alert needs to specify a Policy and a threshold: trigger after X violations within Y minutes/hours/days. This threshold replaces the combination of metric, operator and value used in other alerts.Find out more about alerts.

Using multiple Policies

When multiple Policies target the same topic, there are two scenarios that can occur when a record is produced:

None of the Policies block the record and all are evaluated
- The evaluation count is increased for all of the Policies.
- The violation count is increased for each violated Policy.
- A report is generated for each violated Policy (that has reporting enabled).
One or more of the Policies block the record production. In this scenario, one of the Policies blocks the record first and then hides it from others
- For the first blocking Policy, both the violation and evaluation counts are increased. If reporting is enabled for that policy, a report is generated.
- For the other Policies: no counts are increased and no reports are generated.

Troubleshoot

What does Policy status mean?

How do I handle headers with dashes?

Why can't `type()` figure out the right numeric types?
