This feature is available with Conduktor Scale Plus only.

​
Overview

Chargeback with Gateway (previously known as Chargeback) lets you visualize the cost allocation of on a few key metrics. Chargeback data can be viewed from the perspective of Overall cost, ingress or egress. Cost is user configured $ per byte.
  • Overall cost displays the total dollar cost by adding together the ingress and egress costs
  • Ingress shows the produced data per service account, by cost, percentage or bytes
  • Egress shows the consumed data per service account, by cost, percentage or bytes

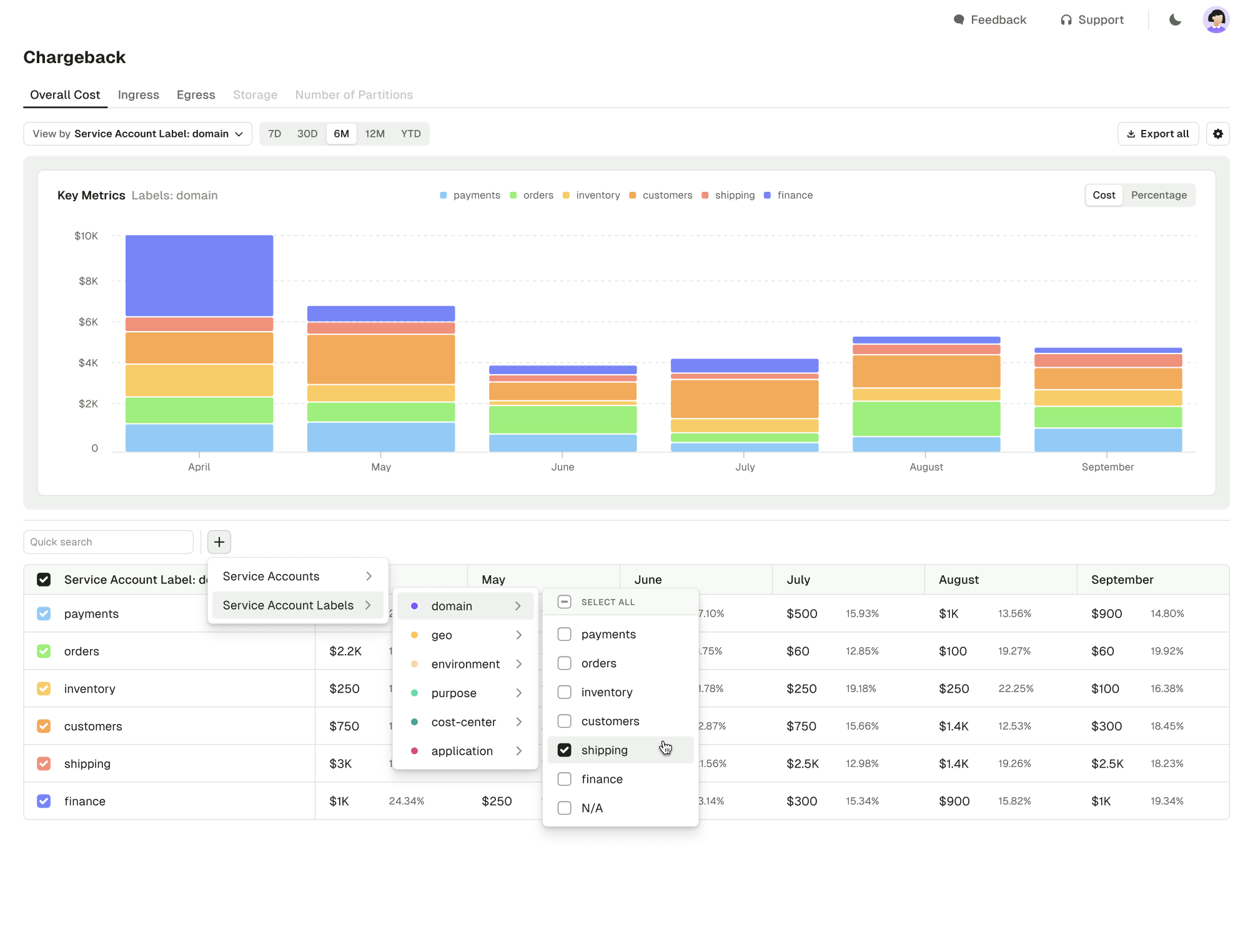

The measured period can be changed from 7D, 30D, 6M, 12M or YTD (Year To Date). Chargeback with gateway graph Chargeback with gateway configuration

​
Export Chargeback data

To facilitate external analysis and reporting, you can export the data shown in the table as a CSV file. To export the data, click Export all at the top right of the graph. The default exported file name will be Chargeback_<startDate>_<endDate>_<activeTabName>.csv. A screenshot of the Chargeback for Gateway traffic section in the console, showing a graph and a data table with cost and usage metrics over time. The 'Export all' button is highlighted in the top right corner of the graph.

​
1. Apply the required filters

Any filters or sorting applied to the table will be reflected in the exported data. Only data matching your current view will be included in the CSV file.

​
2. Specify what data to export

The exported data will depend on the currently selected tab:
  • the Overall cost tab will export the cost values
  • the Ingress or Egress tab will export the produced/consumed bytes

​
3. Select the time period

The exported data will be formatted based on the selected time period:
  • 7D or 30D will export the relevant data split by days
  • 6M, 12M or YTD will export the relevant data split by months
