Conduktor Gateway offers a number of powerful Interceptors that enhance your Kafka usage. For example, you can use them to:
  • perform full-body or field-level encryption and decryption
  • reject (during produce) or skip (during consume) records that don’t match specified data quality rules
  • enforce producer configurations such as acks or compression
  • override or enforce configurations during a CreateTopic request, such as a replication factor or naming convention

Configure and use

To deploy an Interceptor, you need to prepare its configuration. Here’s an example for an interceptor that will block the creation of topics with more than six partitions:
curl \
  --request PUT \
  --url 'http://localhost:8888/gateway/v2/interceptor' \
  --header 'Authorization: Basic YWRtaW46Y29uZHVrdG9y' \
  --header 'Content-Type: application/json' \
  --data-raw '{
  "kind" : "Interceptor",
  "apiVersion" : "gateway/v2",
  "metadata" : {
    "name" : "less-than-6-partitions"
  },
  "spec" : {
    "pluginClass": "io.conduktor.gateway.interceptor.safeguard.CreateTopicPolicyPlugin",
    "priority": 100,
    "config": {
      "topic": ".*",
      "numPartition": {
        "min": 1,
        "max": 6,
        "action": "BLOCK"
      }
    }
  }
}'
Interceptors also combine with each other to create very powerful interactions and solve many interesting use-cases in different ways. One option is to chain them together, so that each Interceptor performs its action sequentially and independently, then passes the result to the next Interceptor to action. The order of execution is determined by the priority of each Interceptor. Lower numbers gets executed first. More advanced behaviors can also be configured such as Scoping and Overriding. They are presented in the detailed Interceptor Concepts page.

Chain Interceptors

Interceptors can be chained, allowing you to create powerful interactions for various scenarios. Each Interceptor can have a distinct purpose that’s unrelated to other Interceptors in the chain. Interceptors are executed in order of priority, starting with the lowest number. Interceptor actions are performed sequentially and independently, passing the results from one to the next one in the chain.
The order of execution is calculated after scoping and overriding. For example, an overridden Interceptor can have a different priority from its parent.

Interceptor scope

Interceptor scoping lets you define affected Kafka clients (ultimately resolved as service accounts). There are four targeting scopes:
  • Global
  • VirtualCluster
  • Group
  • ServiceAccount
See resource reference details. Example:
// This interceptor only applies to service account 'sa-clickstream'
curl \
  --request PUT \
  --url 'http://localhost:8888/gateway/v2/interceptor' \
  --header 'Authorization: Basic YWRtaW46Y29uZHVrdG9y' \
  --header 'Content-Type: application/json' \
  --data-raw '{
  "kind" : "Interceptor",
  "apiVersion" : "gateway/v2",
  "metadata" : {
    "name" : "less-than-6-partitions",
    "scope": {
      "username": "sa-clickstream"
    }
  },
  "spec" : {
    "pluginClass": "io.conduktor.gateway.interceptor.safeguard.CreateTopicPolicyPlugin",
    "priority": 100,
    "config": {
      "topic": ".*",
      "numPartition": {
        "min": 1,
        "max": 6,
        "action": "BLOCK"
      }
    }
  }
}'

Overriding

Interceptor overriding lets you change the behavior of an Interceptor by redeploying it with the same name but under a different scope. This will effectively override the lower precedence Interceptors. The order of precedence from highest (overrides all others) to lowest (easiest to override) is:
  1. ServiceAccount
  2. Group
  3. VirtualCluster
  4. Global
In the two JSON examples above, both Interceptors have the same name (enforce-partition-limit) but two different scopes: the first one is global, the second one is targeting user sa-clickstream. These Interceptors aren’t chained but the second one is overriding the first one. The sa-clickstream service account will be allowed to create topics with 1 to 20 partitions, while other service accounts will be limited to six. If these Interceptors had different names, they would be chained, so the first one would enforce the restriction to 6 partitions.

Ordering

The Interceptor order is determined by its priority: a lower value (e.g. 1) will be executed before a higher one (e.g. 100). To ensure that Interceptors are executed in a particular order, specify a unique and correct priority for each Interceptor. Gateway doesn’t guarantee the order that Interceptors with the same priority are applied.

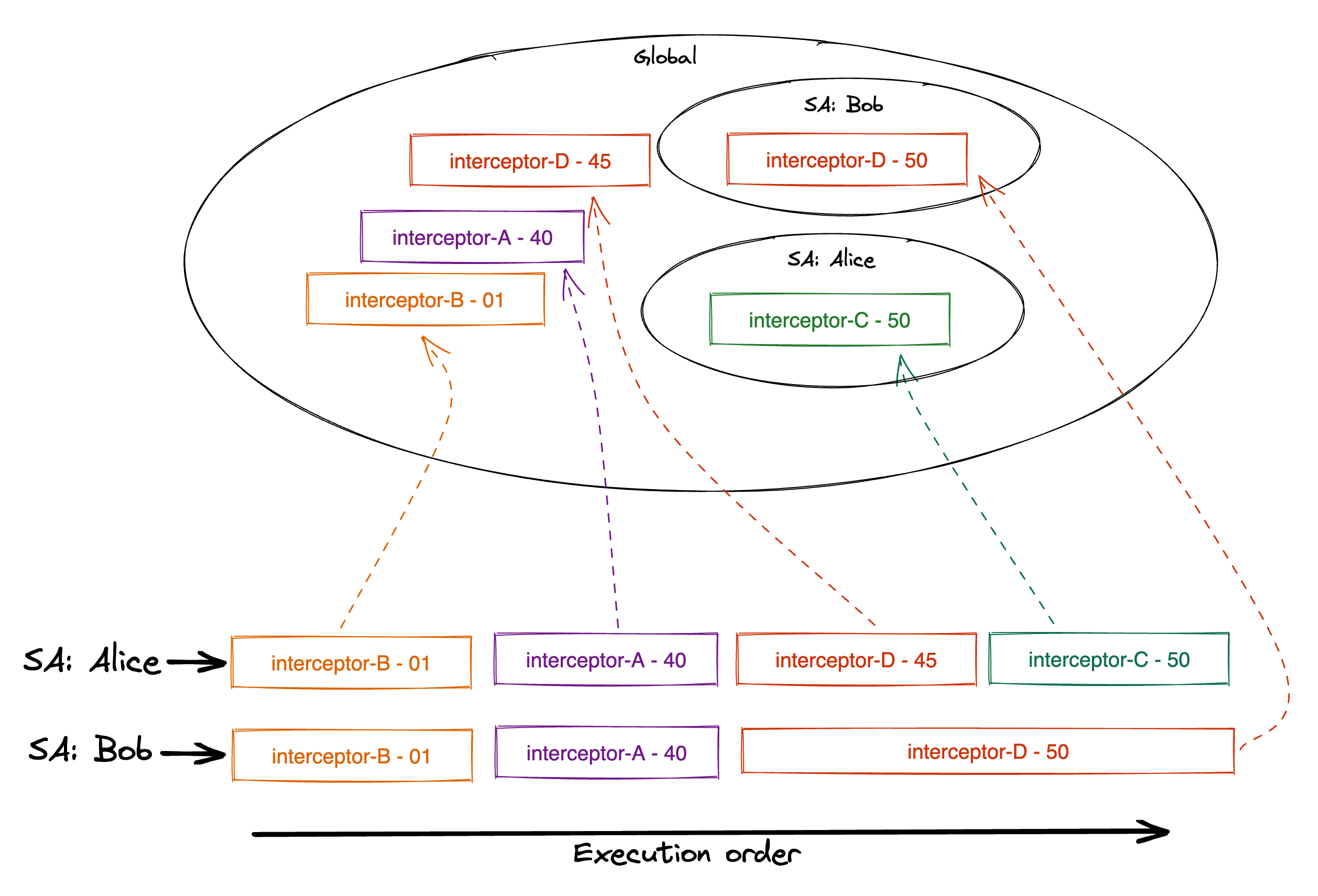

Interceptor interaction example

Here’s an example combining Interceptors chaining, scoping and overriding:
  • interceptor-C is deployed only for Alice (scoping)
  • interceptor-D is deployed globally (scoping) but also deployed specifically for Bob (overriding)
  • interceptor-A and interceptor-B are deployed globally (scoping)
  • the priorities (01, 40, 45 and 50) are then considered for the final execution order (chaining)
Interceptor example When you need Interceptors to apply conditionally, targeting by service account is the most straightforward way.
