Configure the encryption key deletion

Overview

This feature is available with Conduktor Shield only.

Conduktor offers crypto shredding: a cost-efficient and scalable solution for securely deleting encryption keys. Keys are centrally managed and securely stored, which ensures that deleting a key instantly makes all associated data unreadable, without the complexity of self-managed vaults, expensive per-user encryption or additional infrastructure overhead.

Crypto shredding is like throwing away the only key to a locked safe. Without the key, the contents are inaccessible forever.It’s the process of making encrypted data permanently unreadable by securely deleting the encryption keys.

Conduktor’s crypto shredding solution allows you to honor deletion requests and maintain compliance with regulations like GDPR (General Data Protection Regulation) and CCPA (California Consumer Privacy Act). It’s particularly valuable for organizations that need to operate at scale across large user bases or high-volume data sets, offering both substantial cost savings and improved performance compared to managing individual keys directly in an external KMS such as AWS.

Benefits

Our solution:

stores only a single master key in your external KMS
securely manages every individual encryption key in Gateway’s internal key store
allows individual encryption keys to be deleted when needed, rendering the associated data permanently inaccessible

How does it work?

Gateway can encrypt a combination of the record key, the record headers and the record value.
- It can encrypt the entire key and record value, or individual fields.
It does this using an encryption key with an ID derived from a property of each record (e.g., a field or key value that uniquely identifies the associated user)
- This encryption key is called a DEK (short for Data Encryption Key) and is how we will refer to it for the rest of the tutorial.
- The DEK is securely and configurably generated by Gateway using the TINK AEAD cryptographic library
Gateway encrypts the DEK before storing it using a single master encryption key provided by an external KMS (e.g., AWS KMS).
- The master encryption key is called a KEK (short for Key Encryption Key) and is how we will refer to it for the rest of the tutorial.
- The encrypted DEK is called an EDEK (short for Encrypted Data Encryption Key) and is how we will refer to it for the rest of the tutorial.
The EDEK is stored in a dedicated compacted Kafka topic called the Encryption Keys Store.
- This store is secure because an EDEK cannot be decrypted without the KEK from the KMS.
Overwriting an EDEK in the Encryption Keys Store makes the associated encrypted data permanently undecryptable via Gateway.

Find out more about Gateway’s encryption.

Sample use case

This tutorial will show how to:

Set up a local Gateway to encrypt sensitive user data sent to a Kafka topic, using the Gateway KMS.
Decrypt data read from the same Kafka topic via Gateway (in order to demonstrate normal working conditions).
Apply crypto shredding to an EDEK so that associated data can no longer be decrypted by Gateway.

We’ll configure Gateway to encrypt sensitive customer data (password, visa) using a DEK derived from a unique customer identifier (userId). Other data (e.g., name) will be left unencrypted. All of the data will come from the same simple json payload. For example, we might expect to see

{
  "userId" : 101,
  "name" : "Joe Smith",
  "password" : "admin123",
  "visa" : 4111111145551142
}

encrypted as:

{
  "userId" : 101,
  "name" : "Joe Smith",
  "password" : "AAAABQAAAAKNxgtetTtIBLsCuCd5LJ7kYDspZqsfUhWRY7lDlVIWF2UgALxI8WEzcXAxEjuuWFiq+Kb8K6pTA5IPeg==",
  "visa" : "AAAAAgAAAAKNxgtetTtIBLsCuCd5LJ7k5Dab7pJ9dEQtf5TjHM1ZasVGOEeYI5Vna/HyDGQTZqYT0KWAAjsoe17+F8nPbFlX5Ms7n6ryCyTPyYPLi/hKMd5JDQAJAdfg/2FRtpHui3MaUjsipuo+7gdnU7HKEd64Hi/+hH2jQxQVJOoujxg="
}

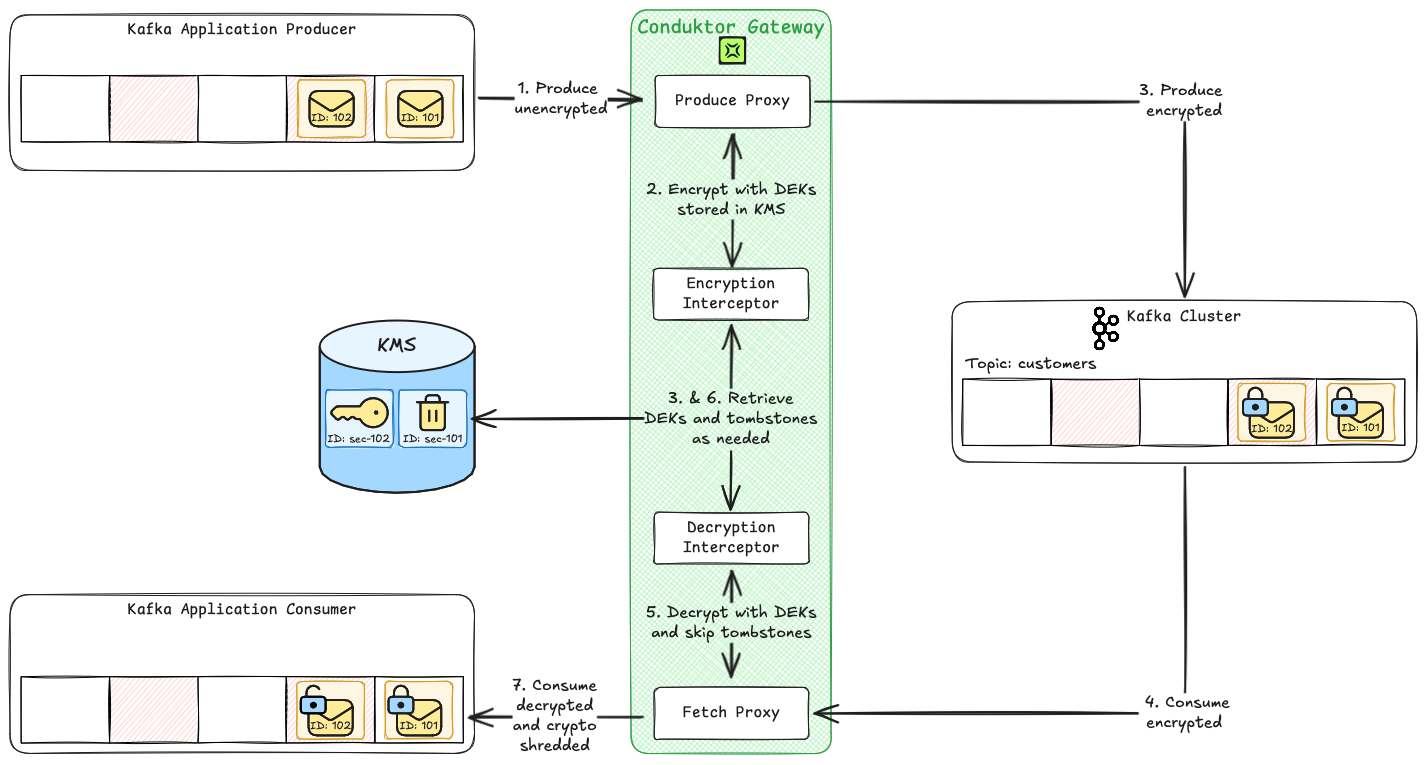

Here’s a high-level visualization of the crypto shredding process:

1. Setup an environment

The following Docker Compose file will setup Kafka, the Conduktor platform and a Vault KMS instance to work together. It will then create a single Kafka topic called customers that the rest of the tutorial will instruct you how to make use of for the encryption and crypto shredding use case.

docker compose -f docker-compose.yaml up -d

docker-compose.yaml

docker-compose.yml

services:
  zookeeper:
    image: "confluentinc/cp-zookeeper:7.9.2"
    container_name: crypto-shredding-howto-zookeeper
    restart: always
    ports:
      - "22181:2181"
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
    healthcheck:
      test: echo srvr | nc zookeeper 2181 || exit 1
      retries: 20
      interval: 10s
  kafka-1:
    image: "confluentinc/cp-kafka:7.9.2"
    container_name: crypto-shredding-howto-kafka-1
    restart: always
    ports:
      - "19092:19092"
    environment:
      KAFKA_ZOOKEEPER_CONNECT: "zookeeper:2181"
      KAFKA_LISTENERS: "INTERNAL://kafka-1:9092,EXTERNAL://:19092"
      KAFKA_ADVERTISED_LISTENERS: "INTERNAL://kafka-1:9092,EXTERNAL://localhost:19092"
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: "INTERNAL:PLAINTEXT,EXTERNAL:PLAINTEXT"
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL
      KAFKA_BROKER_ID: 1
    healthcheck:
      test: nc -zv kafka-1 9092 || exit 1
      interval: 10s
      retries: 25
      start_period: 20s
    depends_on:
      zookeeper:
        condition: service_healthy
  kafka-2:
    image: "confluentinc/cp-kafka:7.9.2"
    container_name: crypto-shredding-howto-kafka-2
    hostname: kafka-2
    ports:
      - 19093:19093
    environment:
      KAFKA_ZOOKEEPER_CONNECT: "zookeeper:2181"
      KAFKA_LISTENERS: "INTERNAL://kafka-2:9093,EXTERNAL://:19093"
      KAFKA_ADVERTISED_LISTENERS: "INTERNAL://kafka-2:9093,EXTERNAL://localhost:19093"
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: "INTERNAL:PLAINTEXT,EXTERNAL:PLAINTEXT"
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL
      KAFKA_BROKER_ID: 2
    healthcheck:
      test: nc -zv kafka-2 9093 || exit 1
      interval: 10s
      retries: 25
      start_period: 20s
    depends_on:
      zookeeper:
        condition: service_healthy
  kafka-3:
    image: "confluentinc/cp-kafka:7.9.2"
    container_name: crypto-shredding-howto-kafka-3
    hostname: kafka-3
    ports:
      - 19094:19094
    environment:
      KAFKA_ZOOKEEPER_CONNECT: "zookeeper:2181"
      KAFKA_LISTENERS: "INTERNAL://kafka-3:9094,EXTERNAL://:19094"
      KAFKA_ADVERTISED_LISTENERS: "INTERNAL://kafka-3:9094,EXTERNAL://localhost:19094"
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: "INTERNAL:PLAINTEXT,EXTERNAL:PLAINTEXT"
      KAFKA_INTER_BROKER_LISTENER_NAME: INTERNAL
      KAFKA_BROKER_ID: 3
    healthcheck:
      test: nc -zv kafka-3 9094 || exit 1
      interval: 10s
      retries: 25
      start_period: 20s
    depends_on:
      zookeeper:
        condition: service_healthy
  vault:
    image: hashicorp/vault
    container_name: crypto-shredding-howto-vault
    healthcheck:
      test: nc -zv 0.0.0.0 8200
      interval: 5s
      retries: 25
    hostname: vault
    environment:
      VAULT_ADDR: http://0.0.0.0:8200
      VAULT_DEV_ROOT_TOKEN_ID: vault-plaintext-root-token
    ports:
    - 8200:8200
    command:
    - sh
    - -c
    - (while ! nc -z 127.0.0.1 8200; do sleep 1; echo 'waiting for vault service ...';
      done; export VAULT_ADDR='http://0.0.0.0:8200';vault secrets enable transit;
      vault secrets enable -version=1 kv; vault secrets enable totp ) & vault server
      -dev -dev-listen-address=0.0.0.0:8200
  conduktor-gateway:
    image: conduktor/conduktor-gateway:3.12.0
    hostname: conduktor-gateway
    container_name: crypto-shredding-howto-conduktor-gateway
    environment:
      KAFKA_BOOTSTRAP_SERVERS: kafka-1:9092,kafka-2:9093,kafka-3:9094
      VAULT_TOKEN: vault-plaintext-root-token
      GATEWAY_ADMIN_API_USERS: "[{username: admin, password: conduktor, admin: true}]"
      GATEWAY_ACL_ENABLED: false
      GATEWAY_MIN_BROKERID: 1
    ports:
      - "8888:8888"
      - "6969:6969"
    healthcheck:
      test: curl localhost:8888/health
      interval: 5s
      retries: 25
    volumes:
    - ./driver-gateway/deploy/ssd-deployment/templates:/templates:ro
    depends_on:
      kafka-1:
        condition: service_healthy
      kafka-2:
        condition: service_healthy
      kafka-3:
        condition: service_healthy
  kafka-client:
      image: "confluentinc/cp-kafka:7.9.2"
      hostname: kafka-client
      container_name: crypto-shredding-howto-kafka-client
      command: sleep infinity
  conduktor-console:
    image: conduktor/conduktor-console:1.36.2
    container_name: crypto-shredding-howto-conduktor-console
    ports:
      - "8080:8080"
    volumes:
      - conduktor_data:/var/conduktor
    environment:
      CDK_DATABASE_URL: "postgresql://conduktor:change_me@postgresql:5432/conduktor-console"
      CDK_KAFKASQL_DATABASE_URL: "postgresql://conduktor:change_me@postgresql-sql:5432/conduktor-sql"
      CDK_ORGANIZATION_NAME: "getting-started"
      CDK_CLUSTERS_0_ID: "local-kafka"
      CDK_CLUSTERS_0_NAME: "local-kafka"
      CDK_CLUSTERS_0_BOOTSTRAPSERVERS: "kafka-1:9092"
      CDK_CLUSTERS_0_COLOR: "#6A57C8"
      CDK_CLUSTERS_0_ICON: "kafka"
      CDK_CLUSTERS_1_ID: "cdk-gateway"
      CDK_CLUSTERS_1_NAME: "cdk-gateway"
      CDK_CLUSTERS_1_BOOTSTRAPSERVERS: "conduktor-gateway:6969"
      CDK_CLUSTERS_1_KAFKAFLAVOR_URL: "http://conduktor-gateway:8888"
      CDK_CLUSTERS_1_KAFKAFLAVOR_USER: "admin"
      CDK_CLUSTERS_1_KAFKAFLAVOR_PASSWORD: "conduktor"
      CDK_CLUSTERS_1_KAFKAFLAVOR_VIRTUALCLUSTER: "passthrough"
      CDK_CLUSTERS_1_KAFKAFLAVOR_TYPE: "Gateway"
      CDK_CLUSTERS_1_COLOR: "#6A57C8"
      CDK_CLUSTERS_1_ICON: "key"
      CDK_MONITORING_CORTEX-URL: http://conduktor-monitoring:9009/
      CDK_MONITORING_ALERT-MANAGER-URL: http://conduktor-monitoring:9010/
      CDK_MONITORING_CALLBACK-URL: http://conduktor-console:8080/monitoring/api/
      CDK_MONITORING_NOTIFICATIONS-CALLBACK-URL: http://localhost:8080
      CDK_ADMIN_EMAIL: "[email protected]"
      CDK_ADMIN_PASSWORD: "adminP4ss!"
    depends_on:
      conduktor-gateway:
        condition: service_healthy
      postgresql:
        condition: service_healthy
      postgresql-2:
        condition: service_healthy
  conduktor-ctl:
    image: conduktor/conduktor-ctl:v0.6.1
    container_name: crypto-shredding-howto-conduktor-ctl
    volumes:
      - ./:/conduktor-ctl
    environment:
      CDK_BASE_URL: "http://conduktor-console:8080"
      CDK_USER: "[email protected]"
      CDK_PASSWORD: "adminP4ss!"
      CDK_GATEWAY_BASE_URL: "http://conduktor-gateway:8888"
      CDK_GATEWAY_USER: "admin"
      CDK_GATEWAY_PASSWORD: "conduktor"
    entrypoint: |
      sh -c "
      cat > /tmp/topic-customers.yaml << 'EOF'
      apiVersion: kafka/v2
      kind: Topic
      metadata:
        cluster: cdk-gateway
        name: customers
        labels:
          encrypted: \"true\"
      spec:
        replicationFactor: 3
        partitions: 1
        configs: {}
      EOF
      conduktor apply -f /tmp/topic-customers.yaml
      sleep infinity
      "
    depends_on:
      conduktor-console:
        condition: service_healthy
  # Conduktor stores its metadata in PostgreSQL.
  # Consider using an external managed database for production usage.
  # https://docs.conduktor.io/platform/get-started/configuration/database/
  postgresql:
    image: postgres:14
    hostname: postgresql
    container_name: crypto-shredding-howto-postgresql-metadata
    volumes:
      - pg_data:/var/lib/postgresql/data
    environment:
      PGDATA: "/var/lib/postgresql/data"
      POSTGRES_DB: "conduktor-console"
      POSTGRES_USER: "conduktor"
      POSTGRES_PASSWORD: "change_me"
      POSTGRES_HOST_AUTH_METHOD: "scram-sha-256"
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U conduktor -d conduktor-console"]
      interval: 10s
      timeout: 5s
      retries: 5
  # Conduktor depends on a separate db for storing Kafka data for SQL querying
  # It is optional, but required if you wish to use SQL functionality
  # Separate db ensures continued operation of the core Console experience if the SQL db becomes unavailable
  # https://docs.conduktor.io/platform/guides/configure-sql/
  postgresql-2:
    image: postgres:14
    hostname: postgresql-sql
    container_name: crypto-shredding-howto-postgresql-data
    volumes:
      - pg_data_sql:/var/lib/postgresql/data
    environment:
      PGDATA: "/var/lib/postgresql/data"
      POSTGRES_DB: "conduktor-sql"
      POSTGRES_USER: "conduktor"
      POSTGRES_PASSWORD: "change_me"
      POSTGRES_HOST_AUTH_METHOD: "scram-sha-256"
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U conduktor -d conduktor-sql"]
      interval: 10s
      timeout: 5s
      retries: 5
  # Conduktor uses Cortex to store Kafka and applications metrics as well as alerting.
  # It is optional.
  # https://docs.conduktor.io/platform/get-started/configuration/cortex/
  conduktor-monitoring:
    image: conduktor/conduktor-console-cortex:1.36.2
    container_name: crypto-shredding-howto-conduktor-monitoring
    environment:
      CDK_CONSOLE-URL: "http://conduktor-console:8080"
volumes:
  pg_data: {}
  pg_data_sql: {}
  conduktor_data: {}

2. Configure the encryption Interceptor

We’ll use the following encryption Interceptor configuration for this use case. Note that:

Encryption will only be applied to the customers topic (already automatically created).
Gateway will use (and create if necessary) a single Vault KMS key called /transit/keys/master-key as the KEK.
Each record will associate with an Encryption Keys Store Entry derived from the record value userId (as templated in the configuration).
- Each Encryption Keys Store Entry will have a DEK generated by Gateway and stored as an EDEK generated by the KMS using the KEK.
- Each DEK will be used by Gateway to encrypt the password and visa fields. For example, the sample JSON from earlier would have an Encryption Keys Store Entry with id sec-12345678 and the associated DEK would be used to encrypt both the password field admin123 and the visa field 4111111145551142.
This configuration requires raw JSON, AVRO or Protobuf record values to be sent. We’ll send JSON.

The Interceptor configuration can be applied to Gateway via the Conduktor CLI or Console UI. Choose your preferred format:

Conduktor CLI
Console UI

encryption-interceptor.yaml

apiVersion: gateway/v2
kind: Interceptor
metadata:
  name: sensitive customer data encryption
spec:
  pluginClass: io.conduktor.gateway.interceptor.EncryptPlugin
  priority: 100
  config:
    topic: customers
    kmsConfig:
      vault:
        uri: http://vault:8200
        token: "vault-plaintext-root-token"
        version: 1
      gateway:
        masterKeyId: vault-kms://vault:8200/transit/keys/master-key
    fields:
      - fieldName: password
        keySecretId: gateway-kms://sec-{{record.value.userId}}
        algorithm: AES128_GCM
      - fieldName: visa
        keySecretId: gateway-kms://sec-{{record.value.userId}}
        algorithm: AES128_GCM

To deploy this Interceptor configuration, paste it into a file called encryption-interceptor.yaml in the same directory as your docker-compose.yaml and run the following command:

docker compose exec -it conduktor-ctl conduktor apply -f /conduktor-ctl/encryption-interceptor.yaml

You should see the following output:

Interceptor/sensitive customer data encryption: Created

{
  "name": "sensitive customer data encryption",
  "pluginClass": "io.conduktor.gateway.interceptor.EncryptPlugin",
  "priority": 100,
  "config": {
    "topic": "customers",
    "kmsConfig": {
      "vault": {
        "uri": "http://vault:8200",
        "token": "vault-plaintext-root-token",
        "version": 1
      },
      "gateway": {
        "masterKeyId": "vault-kms://vault:8200/transit/keys/master-key"
      }
    },
    "fields": [
      {
        "fieldName": "password",
        "keySecretId": "gateway-kms://sec-{{record.value.userId}}",
        "algorithm": "AES128_GCM"
      },
      {
        "fieldName": "visa",
        "keySecretId": "gateway-kms://sec-{{record.value.userId}}",
        "algorithm": "AES128_GCM"
      }
    ]
  }
}

To apply this configuration:

Log into Console with
- username: [email protected]
- password: adminP4ss!
Select cdk-gateway as your working cluster (in the top left-hand corner).
Click Kafka Gateway in the left hand menu.
Click Create my first Interceptor.
Type Encrypt into the search bar and select Encrypt on produce specific record fields or the entire payload.
Paste the above JSON into the text box (replacing the existing JSON) and click Deploy Interceptor at the bottom of the screen.

You should now be back on the Kafka Gateway page with a single Interceptor (sensitive customer data encryption) configured.

Find out more about configuring encryption in Gateway.

3. Produce encrypted data

With encryption configured, we can now produce records via Gateway that will be encrypted at rest on disk in the backing Kafka cluster (and when re-reading via Kafka or Gateway). Here’s a high-level visualization of the produce process:

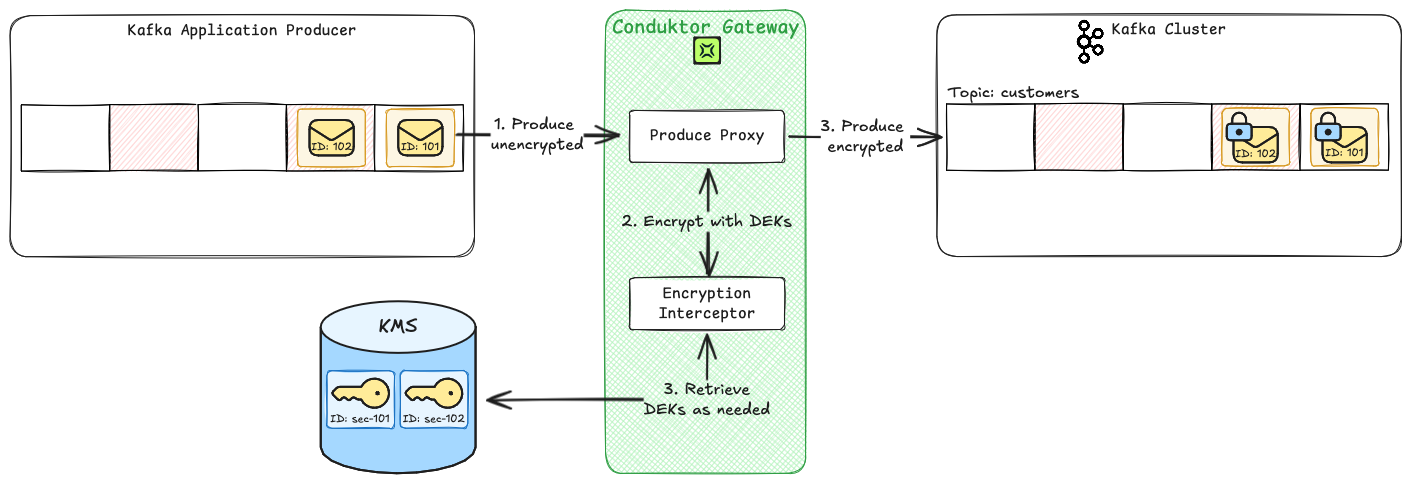

Diagram showing encrypting a message on produce

Choose the Conduktor CLI or Console UI to produce and check the records for yourself:

Conduktor CLI
Console UI

# 1. Produce a record with '101' to topic 'customers' (we'll crypto shred this later)
echo '{ "userId" : 101, "name" : "Joe Smith", "password" : "admin123", "visa" : 4111111145551142 }' | \
docker compose exec -T kafka-client \
  kafka-console-producer --bootstrap-server conduktor-gateway:6969 \
  --topic customers

# 2. Produce a record with '102' to topic 'customers' (we'll compare this to our crypto shredded record later)
echo '{ "userId" : 102, "name" : "Mary Brown", "password" : "abc123", "visa" : 4111111111111111 }' | \
docker compose exec -T kafka-client \
  kafka-console-producer --bootstrap-server conduktor-gateway:6969 \
  --topic customers

# 3. Consume all the records in the 'customers' topic (use command 'ctrl-c' to exit)
docker compose exec kafka-client kafka-console-consumer \
  --bootstrap-server conduktor-gateway:6969 --topic customers --from-beginning

In the customers topic detail page open the Produce tab.
Copy the following text into the Value box:

{ "userId" : 101, "name" : "Joe Smith", "password" : "admin123", "visa" : 4111111145551142 }.

Click Produce at the bottom of the table. The record should appear on the right hand side. We’ll crypto shred the sensitive data in this record later.
Repeat steps 2 and 3 with the following:

{ "userId" : 102, "name" : "Mary Brown", "password" : "abc123", "visa" : 4111111111111111 }. We’ll compare this to our crypto shredded record.

Open the Consume tab.

You should see a final output for the customer data stored in Kafka similar to below. Both password and visa are encrypted as configured, while other fields (e.g., name) remain unencrypted.

{"userId":101,"name":"Joe Smith","password":"AAAABQAAAAKNxgtetTtIBLsCuCd5LJ7kIuzPa+/h6sm+fwHPmDhhMEF3qViBjD4LgxVExq8ct4wZ+DMxJKC86bFgUQ==","visa":"AAAAAgAAAAKNxgtetTtIBLsCuCd5LJ7kK9me1JMK6wuH4r9e30JS43cSY/7QRxy8pxT0zTIUWzxeoc5XigVmIEJLstrf361SVmZq8PCy5qg7tLM92uO9o+TrTFJIa/dxZHj4pgRcUg12ZjKku+3BTXBXPjP77DCyCsW48rUxBDK67dp6RBc="}
{"userId":102,"name":"Mary Brown","password":"AAAABQAAAAJJLWtew1NLwZdoDS87B0qSV8/MdZ9sTWj2EVN1c3j+yXHX0FVx8fOEcA9A/flr7RwONuByQ9GeuZA=","visa":"AAAAAgAAAAJJLWtew1NLwZdoDS87B0qS/3NEgLjPO/32aD5LFN56FmpyRCZzfJ4HN8cgHxTCorNdBup5pnlbi8tFgKKWnqrUnRNTBq5haKXsbJm4/mcd3XFWSSJeIkXtuxb1Lb2SUOVQQiZDmbk3o3p9nVcPCRYR7sx04+++S3Sj6VqM7n8="}

4. Inspect the created keys

Gateway creates keys on demand, so now that we’ve produced two messages with different secretIds (sec-101 and sec-102), we’d expect to see the associated EDEKs persisted in a keystore. Because we are using the Gateway KMS we would also expect the two EDEKs to be persisted in a Kafka topic, so that we can later crypto shred them. The Vault KMS should only contain the master key (/transit/keys/master-key) which was used to encrypt each EDEK. The following diagram visualizes how the produce process works, including the caches which prevent either KMS being overwhelmed by high traffic.

Diagram showing the details encrypting a message on produce

Pick the preferred option for inspecting the Vault tokens.

Conduktor CLI
Console UI

The following curl command should return master-key:

curl \
    --header "X-Vault-Token: vault-plaintext-root-token" \
    --request LIST \
    http://localhost:8200/v1/transit/keys/

The following command should return exactly two EDEKs from the _conduktor_gateway_encryption_keys topic that Gateway uses as its Encryption Keys Store.

# (use command 'ctrl-c' to exit)
docker compose exec kafka-client kafka-console-consumer \
  --bootstrap-server conduktor-gateway:6969 --topic _conduktor_gateway_encryption_keys \
  --from-beginning --property print.key=true --property key.separator="|"

Log into the Vault with:
- method: Token (should be pre-selected)
- password: vault-plaintext-root-token
Navigate to Secrets engines > transit/.
There should be one key: master-key.

In Console:

Click Topics in the left hand menu. No topics should be shown.
There should be just the one topic customers that we created earlier. The Encryption Keys Store topic is hidden by default.
Use the Internal topics selector above the topics table to select Show. More topics should now appear.
Type encryption into the search bar next to the Internal topics selector.
Click the _conduktor_gateway_encryption_keys. This is the default Encryption Keys Store topic.

You should see something like this:

Key	Value
`{"algorithm":"AES128_GCM","keyId":"gateway-kms://sec-101","uuid":"8dc60b5e-b53b-4804-bb02-b827792c9ee4"}`	`{"edek":"vault:v1:5FWLvI/AcXn5ABTBPGONK5yqNVEdnxDfU6FWN8hvIb5aKy3lsXxgFF9LfLr6Og=="}`
`{"algorithm":"AES128_GCM","keyId":"gateway-kms://sec-102","uuid":"492d6b5e-c353-4bc1-9768-0d2f3b074a92"}`	`{"edek":"vault:v1:5RALxs8+0z4w9Xu9ZlEhdTzrti3Laj5JD+5oF06TafLAg+0qHLPjGog3T+jSTA=="}`

There are two records (one for each EDEK) that match the two keyIds. As the number of records with different keyIds grows, this can lead to substantial cost savings and improved performance compared to storing the same keys in the KMS. The record Key is composed of:

algorithm: hardcoded in the configuration and then used to generate the associated DEK in this record
keyId: templated in the configuration and evaluated using data from the associated record (the userId field)
uuid: uniquely generated per inserted record

The record Value is composed of:

edek: the DEK generated by Gateway and encrypted using the Gateway KMS.

The uuid field is necessary because it’s possible for two different Gateway nodes to process a record with the same userId for the first time at the same time.In such a scenario two Encryption Keys Store records with the same keyId but a different uuid would be created (thus avoiding a race condition).This means that it’s possible (although relatively rare) for the same keyId to have multiple EDEKs (i.e., multiple EDEKs to be assigned to the same user).

Make a copy of the UUID returned for "keyId":"gateway-kms://sec-101" as we’ll need it for crypto shredding the associated EDEK in step 7: Crypto shredding.

5. Configure Gateway decryption Interceptor

The decryption Interceptor configuration mirrors the encryption Interceptor configuration that we added earlier. As before, pick the preferred method:

Conduktor CLI
Console UI

decryption-interceptor.yaml

apiVersion: gateway/v2
kind: Interceptor
metadata:
  name: sensitive customer data decryption
spec:
  pluginClass: io.conduktor.gateway.interceptor.DecryptPlugin
  priority: 100
  config:
    topic: customers
    kmsConfig:
      vault:
        uri: http://vault:8200
        token: vault-plaintext-root-token
        version: 1
      gateway:
        masterKeyId: vault-kms://vault:8200/transit/keys/master-key

To deploy this Interceptor configuration, paste the yaml into a file called decryption-interceptor.yaml in the same directory as your docker-compose.yaml and run the following command:

docker compose exec -it conduktor-ctl conduktor apply -f /conduktor-ctl/decryption-interceptor.yaml

You should see the following output:

Interceptor/sensitive customer data decryption: Created

{
  "name": "sensitive customer data decryption",
  "pluginClass": "io.conduktor.gateway.interceptor.DecryptPlugin",
  "priority": 100,
  "config": {
    "topic": "customers",
    "kmsConfig": {
      "vault": {
        "uri": "http://vault:8200",
        "token": "vault-plaintext-root-token",
        "version": 1
      },
      "gateway": {
        "masterKeyId": "vault-kms://vault:8200/transit/keys/master-key"
      }
    }
  }
}

To apply this configuration:

In Console click Kafka Gateway on the left.
Click + New Interceptor on the right-hand side.
Type Decrypt into the search bar and select Decrypt on consume any record fields encrypted by the gateway or the entire payload (the only available Interceptor).
Paste the JSON above into the text box (replacing the existing JSON) and click Deploy Interceptor at the bottom of the screen.

You should now be back on the Kafka Gateway page with two Interceptors configured: sensitive customer data encryption and the newly created sensitive customer data decryption.

6. Consume and decrypt data

With a decryption Interceptor configured on consumption (from the same topic we’ve been encrypting data), it’s now possible to decrypt and read the records. Here’s a diagram visualizing how the consume process works for our use case, including the caches which prevent either KMS being overwhelmed by high traffic:

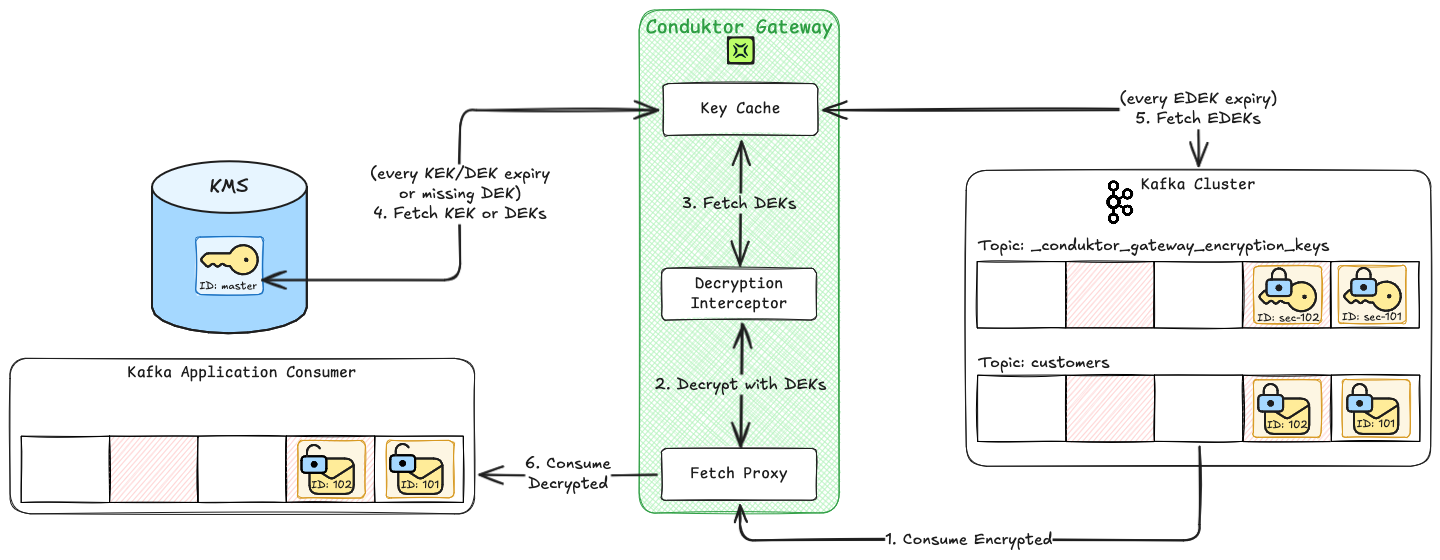

Diagram showing decrypting a message on consume

Pick the method for decrypting and consuming the records:

Conduktor CLI
Console UI

# (use command 'ctrl-c' to exit)
docker compose exec kafka-client kafka-console-consumer \
    --bootstrap-server conduktor-gateway:6969 --topic customers \
    --from-beginning

You should see the following records exactly as they were originally sent:

{"userId":101,"name":"Joe Smith","password":"admin123","visa":4111111145551142}
{"userId":102,"name":"Mary Brown","password":"abc123","visa":4111111111111111}

Although we now produce and consume un-encrypted data, the password and visa fields are still encrypted at rest (on disk in the Kafka broker).If you delete the decryption Interceptor, all of the fields would go back to being encrypted when consumed.

7. Crypto shredding

Records encrypted with Gateway KMS can have their EDEKs crypto shredded by tombstoning the associated record in the Encryption Keys Store topic. The same keyId can have multiple record entries, so it’s important to tombstone every record sharing the same keyId (each will have a unique uuid). We currently don’t offer an automated solution for this process; you have to read the entire topic manually and find every record with the keyId which needs tombstoning. For this tutorial, we only published two records and both had a different keyId, so we can be confident that only one record needs tombstoning.

Crypto shred using the CLI
Crypto shred using Console UI

# 1. Produce a record that tombstones the EDEK associated with
#    'keyId': 'gateway-kms://sec-101'
echo '{"algorithm":"AES128_GCM","keyId":"gateway-kms://sec-101","uuid":"<UUID_FOR_101_FROM_STEP_4>"}|NULL' | \
  docker compose exec -T kafka-client \
  kafka-console-producer --bootstrap-server conduktor-gateway:6969 \
  --topic _conduktor_gateway_encryption_keys \
  --property "parse.key=true" \
  --property "key.separator=|" \
  --property "null.marker=NULL"

# 2. Consume all the records in the 'Encryption Keys Store' topic
#    (use command 'ctrl-c' to exit)
docker compose exec kafka-client kafka-console-consumer \
  --bootstrap-server conduktor-gateway:6969 --topic _conduktor_gateway_encryption_keys \
  --from-beginning --property print.key=true --property key.separator="|"

In Console, go to Topics*. You should see all the topics, including Gateway’s internal configuration ones.
Type encryption into the search bar next to the Internal topics selector.
Click on the _conduktor_gateway_encryption_keys topic.
Find the record that includes "keyId":"gateway-kms://sec-101" and open it.
Click Reprocess message.
As the Target topic select _conduktor_gateway_encryption_keys.
Click Edit and publish. You should be redirected to a produce window with all of the message already filled out in the table.
The Value table entry contains the existing EDEK. Select Null from the drop-down text above it, so that the EDEK filled text box is removed from the screen.
Click Produce. The produced message with a now null value will be shown on the right-hand side.

Records in the Encryption Keys Store topic should now show the latest record value for the EDEK that we’ve crypto shredded as null (or empty, if consuming via the CLI). Gateway is now unable to decrypt data associated with it. To verify this, repeat step 4: Inspect the created keys. You should see something like the following (if using the UI, the order will be in reverse):

Key	Value
`{"algorithm":"AES128_GCM","keyId":"gateway-kms://sec-101","uuid":"9871c88e-d5dd-4cb2-86e0-4d65ef0a8361"}`	`{"edek":"vault:v1:rTbfUBpiPM23WAGu2njeeeqty60BzIPedhl6CL3jaViGDP9Nf0EfRe9+0pbD4A=="}`
`{"algorithm":"AES128_GCM","keyId":"gateway-kms://sec-102","uuid":"381e3464-8876-4bcc-9b75-ff49d19a918f"}`	`{"edek":"vault:v1:c8h+LWonSpPi0Q8Zd8KjHE9GTcxXzvUwAEULDVPQdxDKkSLtiN9teE8lhDeHNw=="}`
`{"algorithm":"AES128_GCM","keyId":"gateway-kms://sec-101","uuid":"9871c88e-d5dd-4cb2-86e0-4d65ef0a8361"}`	`null`

The latest record value for "keyId":"gateway-kms://sec-101" (or first entry if using the UI) should be null. This indicates that it’s been successfully crypto shredded.

There are two entries for "keyId":"gateway-kms://sec-101" because Kafka compaction isn’t instantaneous.Gateway guarantees to use the latest record and to prevent decryption if the associated EDEK has been shredded.However, the earlier record still exists on disk and its EDEK is available to anyone who consumes the Kafka topic directly.This means that it is technically possible for someone with access to the topic and the KEK to recover crypto shredded data. The key should eventually be deleted because the topic is configured for compaction, but there’s no guarantee of when that will occur.Reducing the time until encrypted encryption keys are deleted from disk is possible but beyond the scope of this tutorial.

8. Verify crypto shredded record no longer decrypts

Once an EDEK has been crypto shredded, Gateway will pass any associated records directly to consumers without attempting to decrypt them. The following diagram visualizes how the consume process works for our use case.

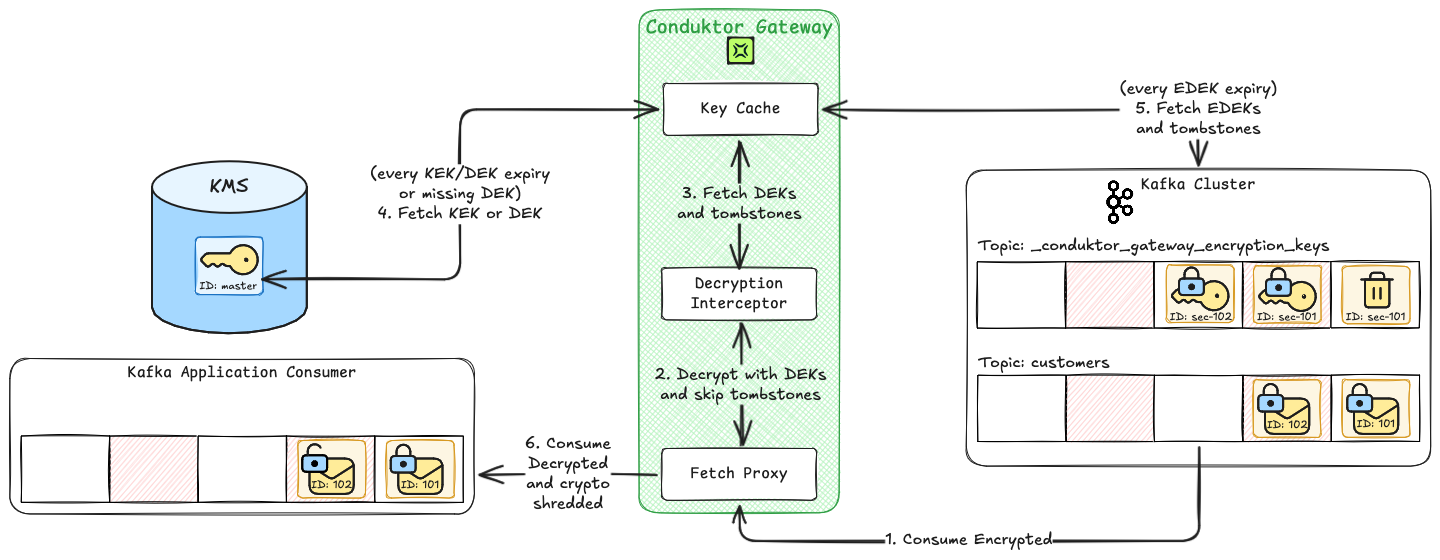

Diagram showing crypto shredded message on consume

The record userId: 101 is associated with the crypto shredded keyId: sec-102 and is no longer decryptable.
The record userId: 102 is associated with keyId: sec-101 and is decryptable.

To verify this, repeat step 6: Consume and decrypt data.

{"userId":101,"name":"Joe Smith","password":"AAAABQAAAAKYcciO1d1MsobgTWXvCoNh51wLjVYSfeSdM8YncPhs5gSQhNYagQO6j74HXLw0nq9cyorBJ21qBollyQ==","visa":"AAAAAgAAAAKYcciO1d1MsobgTWXvCoNhJUWekrCBA77tBU2WfYu+z6eSeRwIuS5UluZs8m/PjSoAEsyL+2Xslt0j6XmvnzfMcFMzeZlk/U+2FNSnTEjB/CjXGXiSr5kA4Idr1dFx6kqJ4wtd0jk8e7kl8z1aAMXTKLyU5Xk6bk4inv7lpMs="}
{"userId":102,"name":"Mary Brown","password":"abc123","visa":4111111111111111}

Gateway crypto shredding only applies to historical records.If a new record was produced for userId: 101 at this point, then a new EDEK would be created (with a new UUID that doesn’t conflict) and the new record would be decryptable.Historical records will remain crypto shredded.

Tutorials

Deploy

Use

Configure

Migrate

Overview

Benefits

How does it work?

Sample use case

1. Setup an environment

2. Configure the encryption Interceptor

3. Produce encrypted data

4. Inspect the created keys

5. Configure Gateway decryption Interceptor

6. Consume and decrypt data

7. Crypto shredding

8. Verify crypto shredded record no longer decrypts

Tutorials

Deploy

Use

Configure

Migrate

​Overview

​Benefits

​How does it work?

​Sample use case

​1. Setup an environment

​2. Configure the encryption Interceptor

​3. Produce encrypted data

​4. Inspect the created keys

​5. Configure Gateway decryption Interceptor

​6. Consume and decrypt data

​7. Crypto shredding

​8. Verify crypto shredded record no longer decrypts

Overview

Benefits

How does it work?

Sample use case

1. Setup an environment

2. Configure the encryption Interceptor

3. Produce encrypted data

4. Inspect the created keys

5. Configure Gateway decryption Interceptor

6. Consume and decrypt data

7. Crypto shredding

8. Verify crypto shredded record no longer decrypts
