Kafka Self-service

Overview

Self-service helps you scale Kafka usage in your organization by facilitating collaboration between the Central Platform Team and Application Teams.

It simplifies and automates processes, establishes clear rules and ways of working, and standardizes the creation and management of Kafka resources.

This approach brings governance into your enterprise through concepts like Ownership and Applications, delegating operations to the Application Teams rather than the Central Platform Team.

• For a presentation of Self-service and its key concepts, see Get Started with Self-service
• For the full definition of each resource, see Self-service Resources Reference

Benefits for Central Platform Team

• Define the general rules of the game
• Enforce naming conventions
• Safeguard from invalid or expensive configurations (wrong replication factor, high partition number, ...)
• Declare the Applications and their rights
• 🍹🏖️

Benefits for Applications Teams

• Autonomy and responsibility over their resources
• Isolation with Application namespaces
• Collaboration through permission delegation without any help from the Central Platform team
• Discoverability through Topic Catalog

Concepts

Self-service relies on a central concept, the Application, which dictates owernship of Kafka resources.

Below outlines the relationships between Self-service resources.

Central Platform Team Resources

Application

An application represents a streaming app or data pipeline that is responsible for producing, consuming or processing data from Kafka. Applications give business context to Kafka resources (topics, consumer groups & subjects) that directly relate to the functioning of that application or pipeline.

Example

---
apiVersion: "self-service/v1"
kind: "Application"
metadata:
  name: "clickstream-app"
spec:
  title: "Clickstream App"
  description: "Clickstream records user’s clicks through their journey on our website"
  owner: "clickstream-group"            # technical-id of the Console Group

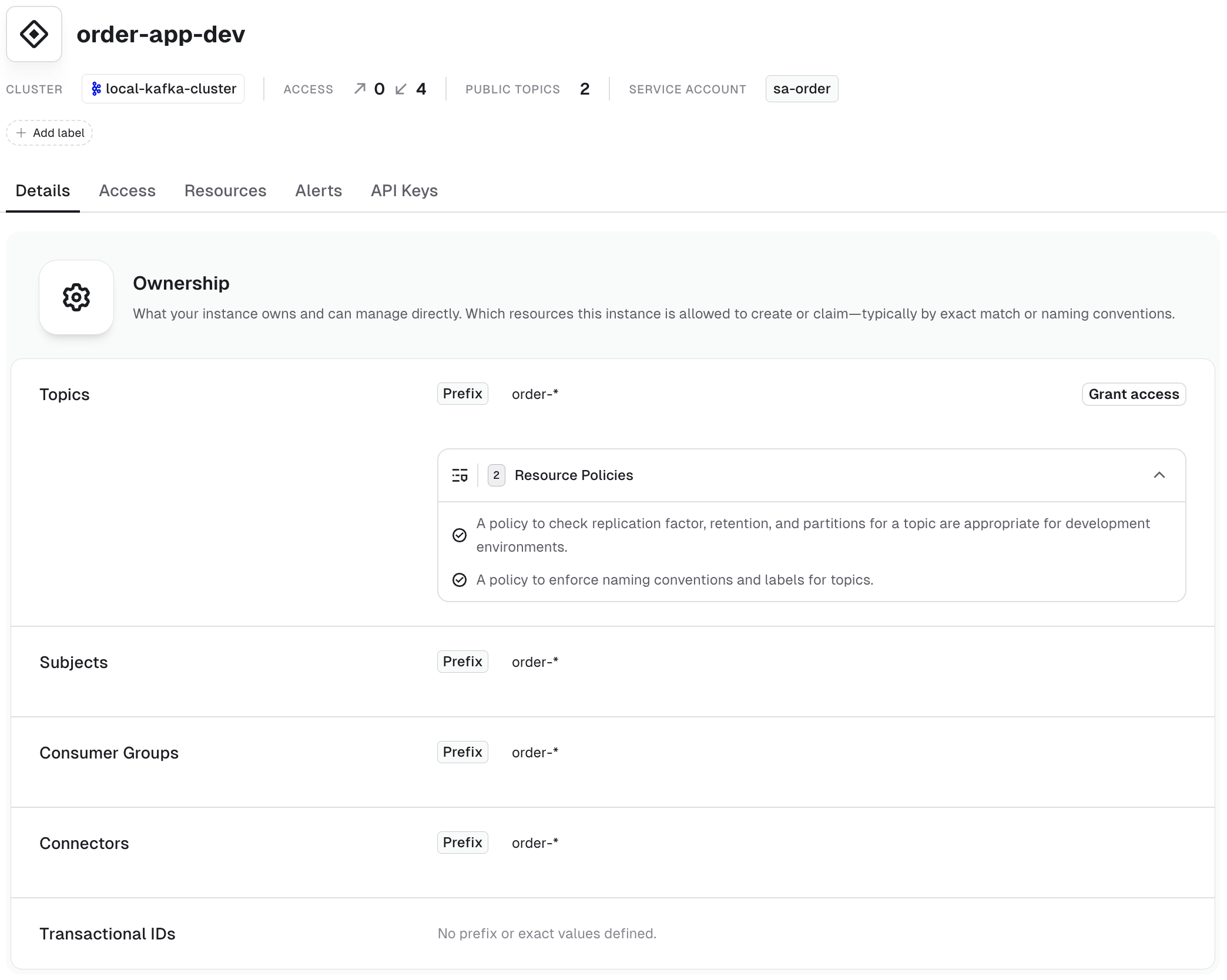

Application Instance

Applications are generally deployed to one or more Kafka clusters, typically to align with the organization's development cycle or environments. We call this concept the Application Instance.

Each Application Instance:

• Is linked to a Kafka Cluster and a Service Account
• Has ownership on the Kafka resources (topics, consumer groups, subjects, ...)
• Grants the permissions
  • On the Service Account using Kafka ACLs (Read & Write on Topics, Read on ConsumerGroups)
  • On the Application owner group in Conduktor Console using RBAC (Admin permissions)

Example

# Application Instance (dev environment)
---
apiVersion: "self-service/v1"
kind: "ApplicationInstance"
metadata:
  application: "clickstream-app"
  name: "clickstream-app-dev"
spec:
  cluster: "shadow-it"
  serviceAccount: "sa-clickstream-dev"
  resources:
    - type: TOPIC
      name: "click."
      patternType: PREFIXED
    - type: CONSUMER_GROUP
      name: "click."
      patternType: PREFIXED

Application Instance Policies

Application Instance Policies restrict the Application Teams to create their resources following certain rules. These rules can be related to Kafka configs but can also apply to metadata.
This is what lets Platform Administrators provide a Self-service experience that doesn't look like the Wild West.

Example

# Policies that restrict the Application to a certain range of configurations
# on topic configs, but also on topic metadata
---
apiVersion: "self-service/v1"
kind: "TopicPolicy"
metadata:
  name: "generic-dev-topic"
spec:
  policies:
    metadata.labels.data-criticality:
      constraint: OneOf
      values: ["C0", "C1", "C2"]
    spec.configs.retention.ms:
      constraint: "Range"
      max: 42
      min: 3

Application Team Resources

Once an Application & Application Instance are defined, Application Teams can now organize and structure their application as they see fit. There are two groups of resources where Application Teams are given autonomy:

• Kafka-related resources, Topic, Subject, Connector, ApplicationInstancePermission.
• Console-related resources, in particular ApplicationGroup, allowing them to define internally who can do what within their Team.

Kafka resources

This is how Application Teams can create the Kafka resources they need for their applications.

# Topic example
---
apiVersion: kafka/v2
kind: "Topic"
metadata:
  cluster: "shadow-it"
  name: "click.screen-events"
spec:
  replicationFactor: 3
  partitions: 6
  configs:
    min.insync.replicas: "2"
    cleanup.policy: "delete"
    retention.ms: "60000"

Application Instance Permission

Application Instance Permissions lets teams to collaborate with each others. Deploying this object will grant permission to the grantedTo Application Instance:

• To its Service Account (Kafka ACL)
• To the Application Team members in Conduktor Console

Example

# Read permission granted to the Heatmap Application on click.screen-events topic
---
apiVersion: self-service/v1
kind: "ApplicationInstancePermission"
metadata:
  application: "clickstream-app"
  appInstance: "clickstream-app-dev"
  name: "clickstream-app-dev-to-heatmap"
spec:
  resource:
    type: TOPIC
    name: "click.screen-events"
    patternType: LITERAL
  permission: READ
  grantedTo: heatmap-app-dev

Application Group

Create an Application Group to directly reflect how your Application operates. You can create as many Application Groups as required to restrict or represent the different teams that use Console on your Application, e.g.:

• Support Team with only Read Access in Production
• DevOps Team with extended access across all environments
• Developers with higher permissions in Dev

Example

# Permissions granted to Console users in the group, CP-COMPANY-CLICKSTREAM-SUPPORT, for the clickstream-app Application
---
apiVersion: self-service/v1
kind: "ApplicationGroup"
metadata:
  application: "clickstream-app"
  name: "clickstream-support"
spec:
  displayName: Support Clickstream
  description: |
    Members of the Support Group are allowed:
      Read access on all the resources
      Can restart owned connectors
      Can reset offsets
  permissions:
    - appInstance: clickstream-app-dev
      resourceType: TOPIC
      resourcePatternType: "LITERAL"
      resourcePattern: "*" # All owned & subscribed topics
      permissions: ["topicViewConfig", "topicConsume"]
    - appInstance: clickstream-app-dev
      resourceType: CONSUMER_GROUP
      resourcePatternType: "LITERAL"
      resourcePattern: "*" # All owned consumer groups
      permissions: ["consumerGroupCreate", "consumerGroupReset", "consumerGroupDelete", "consumerGroupView"]
    - appInstance: clickstream-app-dev
      resourceType: CONNECTOR
      resourcePatternType: "LITERAL"
      resourcePattern: "*" # All owned connectors
      permissions: ["kafkaConnectorViewConfig", "kafkaConnectorStatus", "kafkaConnectPauseResume", "kafkaConnectRestart"]
  members:
    - user1@company.org
    - user2@company.org
  externalGroups:
    - GP-COMPANY-CLICKSTREAM-SUPPORT

Resource Labels

Labels are key value pairs with no constraints to help you organize and surface business metadata into Console. It is our objective that all resources that can be created using the Conduktor CLI can be annotated with metadata in the form of labels.

Today we have label support for a subset of our resources:

• KafkaCluster
• KafkaConnectCluster
• Topic
• Subject
• Connector

We plan to bring label support to the following resources in the future:

• KsqlDBCluster
• User
• Group
• TopicPolicy
• Application
• ApplicationInstance
• ApplicationInstancePermission
• ApplicationGroup

Example

# Topic annotated with useful metadata
---
apiVersion: kafka/v2
kind: "Topic"
metadata:
  cluster: "shadow-it"
  name: clickstream.events
  labels:
    description: "A description for what kind of data this topic contains."
    business-data-classification: C2
    business-doc-url: "https://confluence.company.org/display/CLICK/Kafka"
    application-code: CLK
    environment-code: dev
spec:
  replicationFactor: 3
  partitions: 6
  configs:
    min.insync.replicas: "2"
    cleanup.policy: "delete"
    retention.ms: "60000"

Limited Ownership mode

To help organizations transition to Self-service more easily, we have added a new attribute on ApplicationInstance to let Platform Teams decide the level of autonomy to give to Application Teams.

• ApplicationInstance resources configured with ownershipMode: ALL, which is the default, delegates all permissions related to that resource to the Application Team.
• ApplicationInstance resources configured with ownershipMode: LIMITED delegates only a subset of the available permissions to the Application Team.

This is especially useful if Central Team have a centralized repository and existing workflow for Topic (or other resource) creation and wants to still own that part of the process.
This way they can provide Self-service capabilities while still having Application Teams to go through their pipeline for Topic Creation, instead of Self-service.

Restricted Permissions in LIMITED	Description
Topic
topicEditConfig	Permission to edit the topic configuration.
topicCreate	Permission to create a new topic.
topicDelete	Permission to delete the topic.
topicAddPartition	Permission to add partitions to the topic.
Subject
subjectCreateUpdate	Permission to create or update the subject.
subjectDelete	Permission to delete the subject.
subjectEditCompatibility	Permission to edit the subject compatibility settings.
Consumer Group
consumerGroupCreate	Permission to create a new consumer group.
consumerGroupDelete	Permission to delete the consumer group.
Kafka Connect
kafkaConnectorEditConfig	Permission to edit the Kafka Connect configuration.
kafkaConnectorDelete	Permission to delete connectors.
kafkaConnectorCreate	Permission to create new connectors.

Self-service User Interface

For now, Self-service relies principally on the Conduktor CLI.

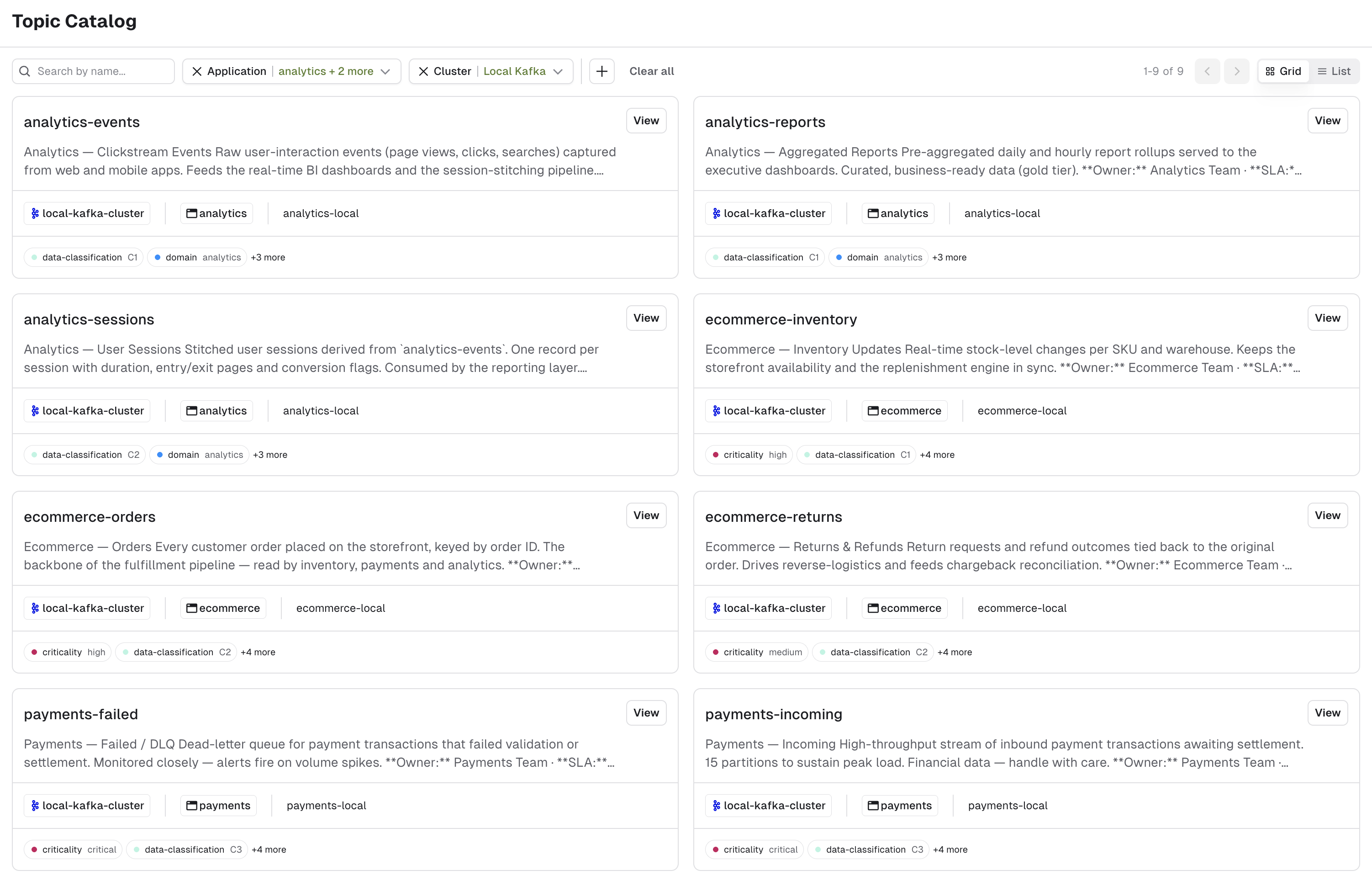

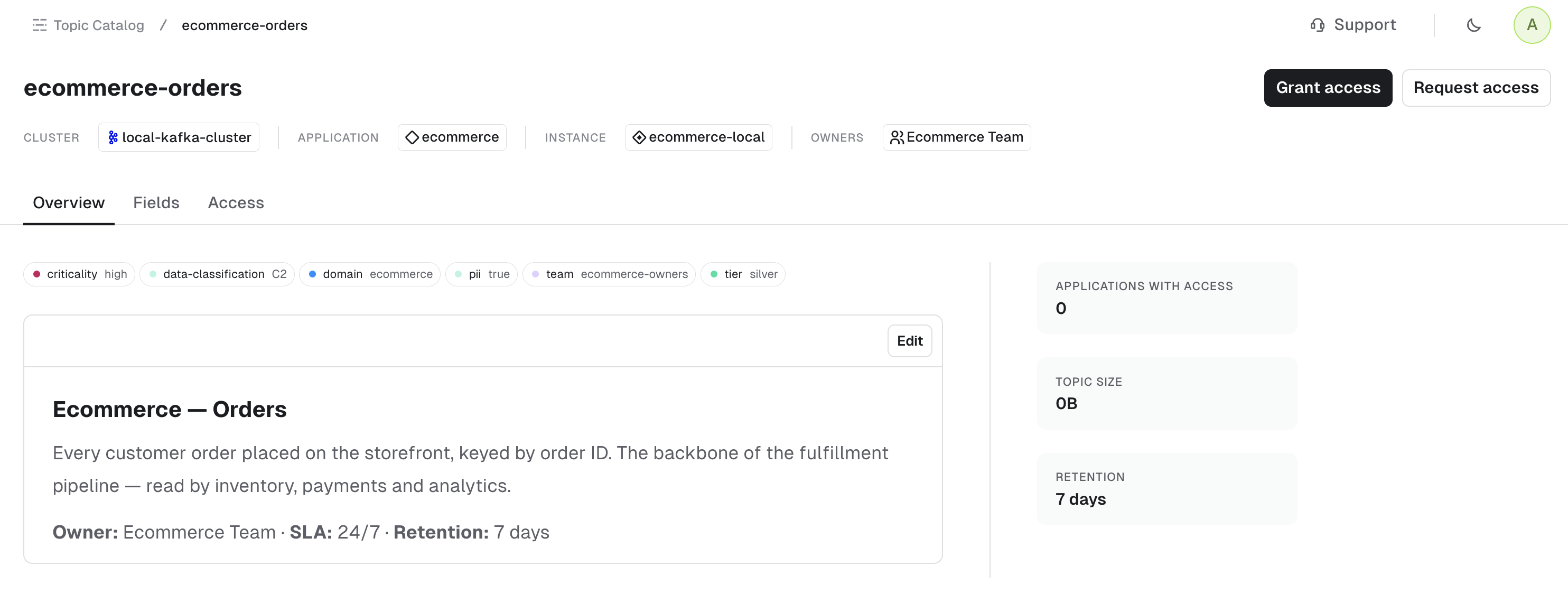

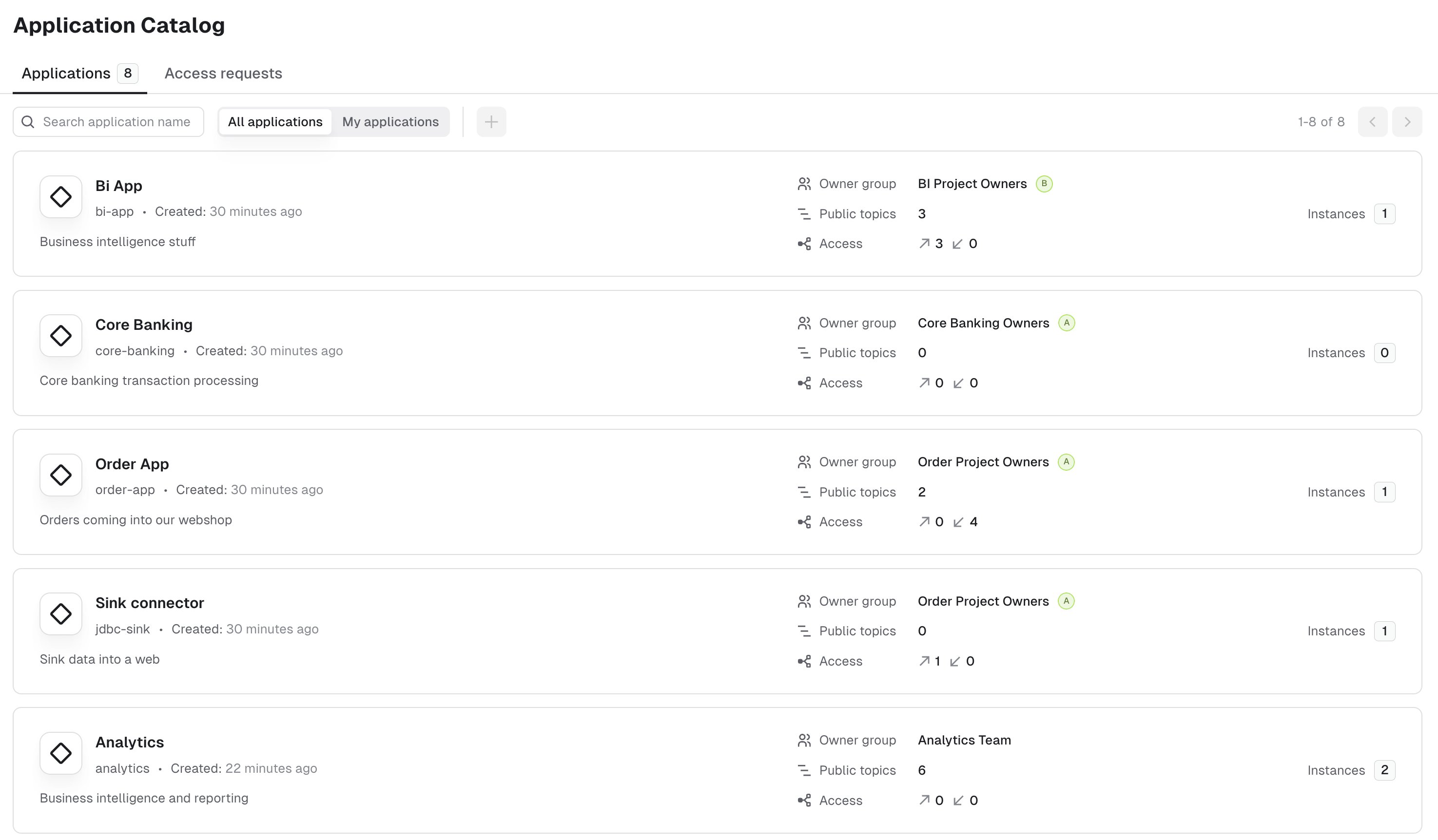

The Console UI reconciles actions executed via the CLI to present Read Only views of your Application Catalog and Topic Catalog. This promotes discoverability of Kafka resources with business context inside your organization.
