Audit Log Events

• Overview
• Audit Events
• Console
  • ResourceType: Topic
  • ResourceType: Subject
  • ResourceType: SchemaRegistry
  • ResourceType: ConsumerGroup
  • ResourceType: Connector
• Data Masking
  • ResourceType: DatamaskingPolicy
• Self-Service
  • ResourceType: Application
• Admin
  • ResourceType: Cluster
  • ResourceType: Group
  • ResourceType: User
• Exportable Audit Log Events
  • Kafka-Related Events
  • IAM-Related Events
  • SelfService-Related Events
  • Admin-Related Events

Overview

As you and your team interact with Conduktor, audit events are captured that give a detailed tracking of actions taken against Kafka. This gives you centralized visibility of user-related and resource-related events. Audit log events.

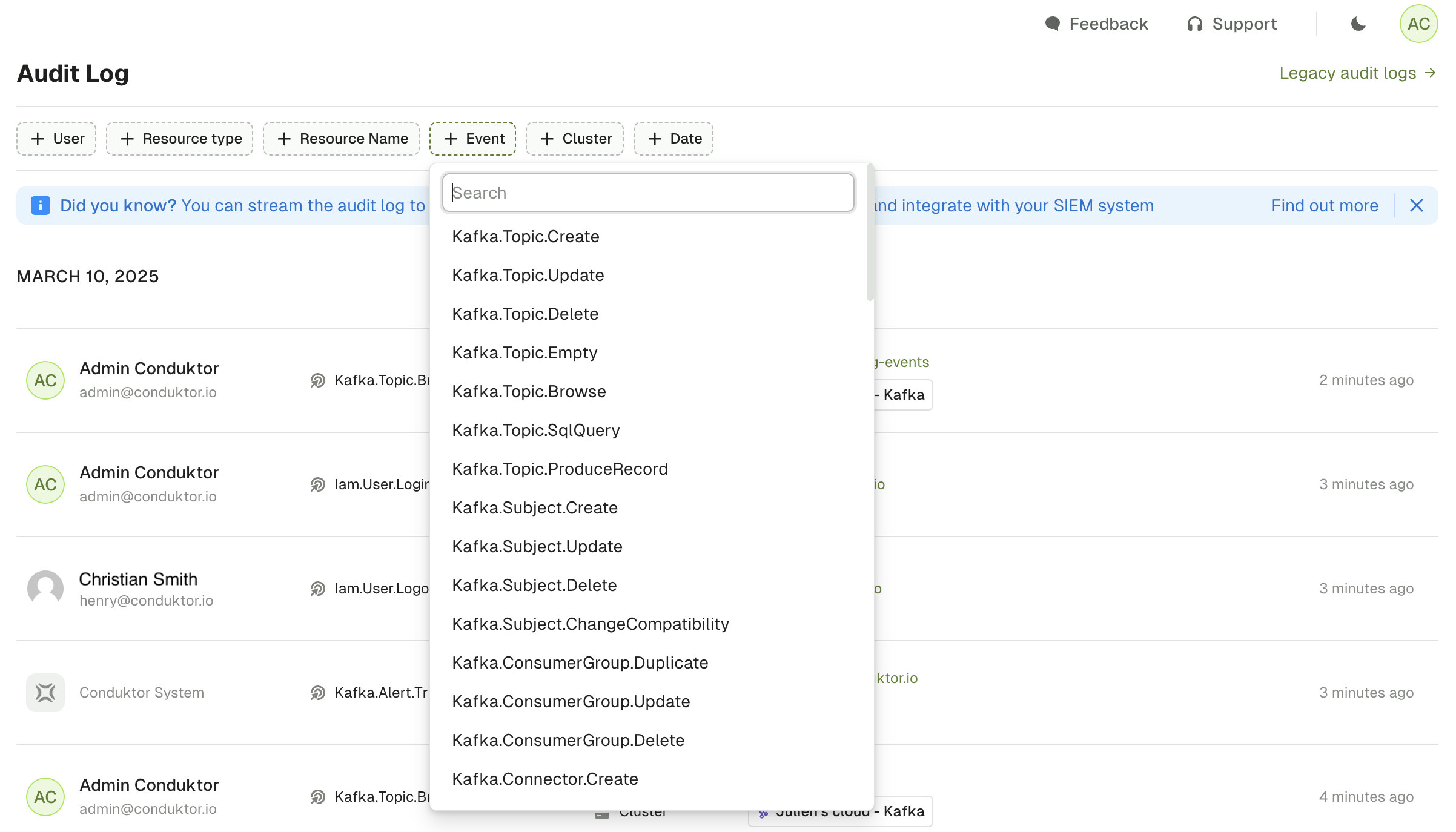

The audit log events can be browsed, filtered and searched directly within Conduktor's UI or exported from a Kafka topic for any further use you may have for them, such as maintaining your own audit trail in other systems.

Clicking on an event in the audit log exposes event-specific metadata. The below example demonstrates an audit event for a new connector added, which can include metadata such as custom tags, the cluster, connector name and its ID.

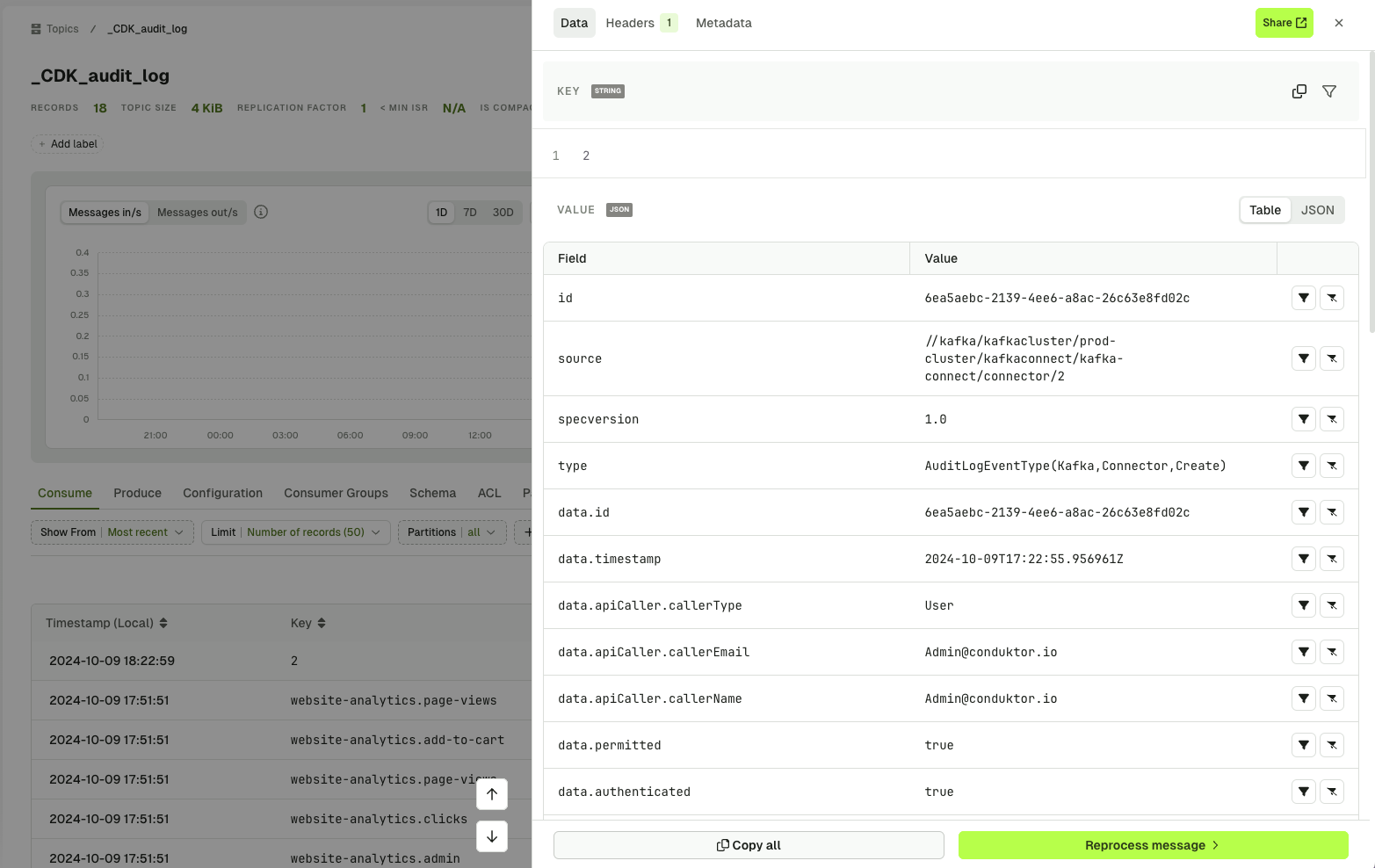

Audit log events are also exported to a Kafka topic once configured with the right environment variables, here you can leverage all the benefits of Conduktor when finding a message.

Audit Events

Below outlines the audit events currently tracked by Conduktor.

• Console
• Data Masking
• Topic as a Service
• Admin

Console

ResourceType: Topic

CRN: kafka:/cluster/<uuid>/topic/<topic-name>

• topic.ProducedRecord
• topic.Browsed
• topic.Deleted
• topic.Created
• topic.Updated
• topic.Emptied
• topic.Tagged
• topic.Untagged

ResourceType: Subject

CRN kafka:/cluster/<uuid>/subject/<subject-name>

• subject.Created
• subject.Updated
• subject.ChangedCompat
• subject.Deleted
• subject.DeletedVersions
• subject.DeletedVersion

ResourceType: SchemaRegistry

CRN kafka:/cluster/<uuid>

• registry.ChangedGlobalCompat

ResourceType: ConsumerGroup

CRN kafka:/cluster/<uuid>/group/<group-name>

• consumergroup.Created
• consumergroup.Updated (ResetOffsets)
• consumergroup.Deleted

ResourceType: Connector

CRN kafka:/cluster/<uuid>/connect/<connect-cluster-id>/<connector-name>

• connector.Created
• connector.Updated
• connector.Deleted
• connector.Restarted
• connector.RestartedTask
• connector.Paused
• connector.Resumed

Data Masking

ResourceType: DatamaskingPolicy

CRN platform:/datamasking/<uuid>

• policy.Upserted
• policy.Deleted

Self-Service

ResourceType: Application

CRN platform:/application/<app-slug>

• application.Created
• application.Deleted
• application.Updated
• application.access-request.Approved from / to
• application.access-request.Rejected

Admin

ResourceType: Cluster

CRN kafka:/cluster/<uuid>

• cluster.Created
• cluster.Updated
• cluster.Deleted

ResourceType: Group

CRN platform:/group/<uuid>

• group.Created
• group.member.Added
• group.member.Deleted
• group.permission.Added
• group.permission.Deleted

ResourceType: User

CRN platform:/user/<email>

• user.Login
• user.permission.Added
• user.permission.Deleted
• user.platform_role.Updated

Exportable Audit Log Events

Audit log events from within the UI are being superceeded by a new set of audit log events that are exportable from a Kafka topic. The exportable audit log events have more detail, providing additional information about the event that has taken place.

Learn how to configure audit events for export via configuration properties.

The events conform to the CloudEvents specification, a vendor-neutral format that follows the following structure:

{
    "specversion" : "1.0",
    "type" : "com.github.pull_request.opened",
    "source" : "https://github.com/cloudevents/spec/pull",
    "subject" : "123",
    "id" : "A234-1234-1234",
    "time" : "2018-04-05T17:31:00Z",
    "comexampleextension1" : "value",
    "comexampleothervalue" : 5,
    "datacontenttype" : "text/xml",
    "data" : "<much wow=\"xml\"/>"
}

An example Conduktor event would look like:

{
	"source": "//kafka/kafkacluster/production/topic/website-orders",
	"data": {
		"eventType": "Kafka.Topic.Create",
		// Additional event specific data...
		"metadata": {
			"name": "website-orders",
			"cluster": "production"
		}
		// Additional event specific metadata...
	},
	"datacontenttype": "application/json",
	"id": "ad85122c-0041-421e-b04b-6bc2ec901e08",
	"time": "2024-10-10T07:52:07.483140Z",
	"type": "AuditLogEventType(Kafka,Topic,Create)",
	"specversion": "1.0"
}

Below is the list of all the exported audit log event types, that are currently available. We are expanding the coverage to UI events and more in subsequent releases.

Kafka-Related Events

Event Type	Description
Kafka.Subject.Create	Kafka subject is created.
Kafka.Subject.Update	Kafka subject is updated.
Kafka.Subject.Delete	Kafka subject is deleted.
Kafka.Topic.Create	Kafka topic is created.
Kafka.Topic.Update	Kafka topic is updated.
Kafka.Topic.Delete	Kafka topic is deleted.
Kafka.Topic.Empty	Kafka topic is emptied.
Kafka.Connector.Create	Kafka connector is created.
Kafka.Connector.Update	Kafka connector is updated.
Kafka.Connector.Delete	Kafka connector is deleted.

IAM-Related Events

Event Type	Description
Iam.User.Create	IAM user is created.
Iam.User.Update	IAM user is updated.
Iam.User.Delete	IAM user is deleted.
Iam.Group.Create	IAM group is created.
Iam.Group.Update	IAM group is updated.
Iam.Group.Delete	IAM group is deleted.

SelfService-Related Events

Event Type	Description
SelfService.Application.Create	Self-service application is created.
SelfService.Application.Update	Self-service application is updated.
SelfService.Application.Upsert	Self-service application is created or updated.
SelfService.Application.Delete	Self-service application is deleted.
SelfService.ApplicationInstance.Create	Self-service application instance is created.
SelfService.ApplicationInstance.Update	Self-service application instance is updated.
SelfService.ApplicationInstance.Delete	Self-service application instance is deleted.
SelfService.ApplicationGroup.Create	Self-service application group is created.
SelfService.ApplicationGroup.Update	Self-service application group is updated.
SelfService.ApplicationGroup.Delete	Self-service application group is deleted.
SelfService.ApplicationPolicy.Create	Self-service application policy is created.
SelfService.ApplicationPolicy.Update	Self-service application policy is updated.
SelfService.ApplicationPolicy.Delete	Self-service application policy is deleted.
SelfService.ApplicationInstancePermission.Create	Permissions are created for an app instance.
SelfService.ApplicationInstancePermission.Delete	Permissions are deleted for an app instance.

Admin-Related Events

Event Type	Description
Admin.KafkaConnect.Create	Admin creates a Kafka Connect instance.
Admin.KafkaConnect.Update	Admin updates a Kafka Connect instance.
Admin.KafkaConnect.Delete	Admin deletes a Kafka Connect instance.
Admin.KsqlDB.Create	Admin creates a KsqlDB instance.
Admin.KsqlDB.Update	Admin updates a KsqlDB instance.
Admin.KsqlDB.Delete	Admin deletes a KsqlDB instance.
Admin.KafkaCluster.Create	Admin creates a Kafka cluster.
Admin.KafkaCluster.Update	Admin updates a Kafka cluster.
Admin.KafkaCluster.Delete	Admin deletes a Kafka cluster.
